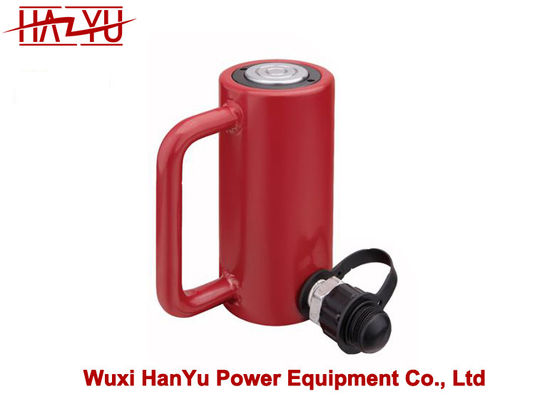

Dump Truck Hydraulic Cylinder Lineman Tools Heavy Duty RSC-1050
  • name
  • name

Dump Truck Hydraulic Cylinder Lineman Tools Heavy Duty RSC-1050

MOQ: 50pieces
Price: Negotiable
Standard Packaging: CASE
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
RSC-1050
Oil Capacity:
72cc
Closed Height:
95mm
Stroke:
50mm
Weight:
2.5kg
Tonnage:
10T
Type:
Dump Truck Hydraulic Cylinder
Highlight:

Dump Truck Hydraulic Cylinder

,

Hydraulic Cylinder Lineman Tools

Product Description

Lineman Tools Heavy-duty RSC-1050 Dump Truck Hydraulic Cylinder



Hydraulic Cylinder

  • Designed for use in all positions
  • Heavy-duty return springs
  • Baked enamel finish for increased corrosion resistance
  • Nickel-plating floating center tube increase product life
Model Tonnage(T) Stroke(mm) Oil capacity(cc) Closed height(mm) Weight(kg) Volume(cm)
RSC-1050 10 50 72 95 2.5 14*7.5*10
RSC-10100 10 100 145 145 4.5 15*10.5*15
RSC-10150 10 150 217 225 7 13.5*10.5*23.5
RSC-2050 20 50 141 100 5 15.5*10*10.5
RSC-20100 20 100 282 165 7.5 18.5*13*18
RSC-20150 20 150 423 225 11 16.5*13*24.5
RSC-3050 30 50 210 105 5.5 16.5*11*11
RSC-30100 30 100 418 165 9 19*14*17.5
RSC-30150 30 150 627 230 15 16*14*24
RSC-5050 50 50 318 110 9 18*13*11.5
RSC-50100 50 100 635 170 13 20*16*19
RSC-50150 50 150 953 245 18 18*16*26.5
RSC-10050 100 50 623 135 19 22*21*15
RSC-100100 100 100 1246 235 34 25*25*26
RSC-100150 100 150 1869 285 40.5 25*25*31
RSC-20050 200 50 1280 216 55 33*31*22
RSC-200100 200 100 2543 235 72 33*31*27
RSC-200150 200 150 3810 316 82 33*31*32
RSC-30050 300 50
RSC-300100 300 100
RSC-300150 300 150
  1. Shopping ring(to protect the cylinder when the stroke get to top, absorb heaviness on the other side.)
  2. Spring(provide the capability of quick flexing)
  3. Cylinder wall and plunger(they can avoid eroding and less friction by chrome plate)
  4. Brass ring(use high quality of brass to joint, to protect the status of overloading and absorb heaviness on the other side.)

Dump Truck Hydraulic Cylinder Lineman Tools Heavy Duty RSC-1050 0
