Hydraulic Power Punch Tool 50T 25mm Copper Sheet / 16mm Metal Sheet
  • name
  • name

Hydraulic Power Punch Tool 50T 25mm Copper Sheet / 16mm Metal Sheet

MOQ: 50pieces
Price: Negotiable
Standard Packaging: CASE
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
CH-80
Type:
Hydraulic Power Punch Tool
Punch Force:
50T
Max Thickness Of Sheet:
25mm Of Copper Sheet/16mm Of Metal Sheet
Depth Of Throat:
119mm
Height:
556mm
Weight:
100kg
Match Pump:
CP-700, DYB-63A
Accessories:
Φ16mm, Φ18mm, Φ22mm, Φ25mm
Highlight:

Hydraulic Power Punch Tool

,

Power Punch Tool 50T

Product Description

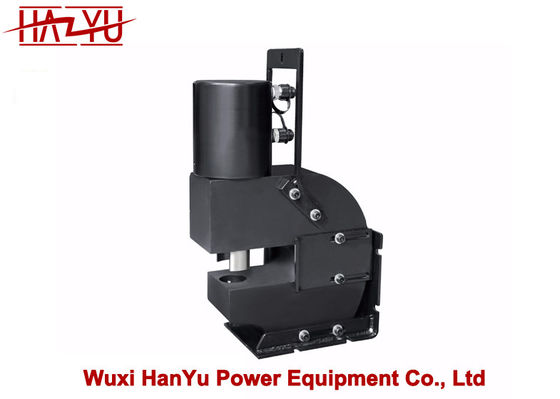

Lineman Tools CH-80 Hydraulic Power Punch Tool 25mm Of Copper Sheet/16mm Of Metal Sheet



  • Hydraulic punch tool specialized for punching “L” shaped or “H” shaped of copper and aluminum sheet.
  • The bottom of the tool with flat seat design to ensure stable placement.
  • It can match pumps CP-700 and DYB-63A.
Model CH-80
Punch force 50T
Max thickness of sheet 25mm of copper sheet/16mm of metal sheet
Depth of throat 119mm
Height 556mm
Weight 100kg
Package Wood carton
Accessories Φ16mm, Φ18mm, Φ22mm, Φ25mm
Match pump CP-700, DYB-63A



Hydraulic Power Punch Tool 50T 25mm Copper Sheet / 16mm Metal Sheet 0



Other Model
Model CH-60 CH-70 SH-70B
Punch force 31T 35T 35T
Max thickness of sheet 10mm of copper sheet/6mm of metal sheet 12mm of copper sheet/10mm of metal sheet 12mm of copper sheet/10mm of metal sheet
Depth of throat 75mm 95mm 77mm
Height 390mm 460mm 460mm
Weight 17.5kg 34.5kg 34.5kg
Package Carton Carton Plastic case
Size 390*250*140mm 470*340*240mm 470*340*240mm
Accessories 3/8"(Φ10.5), 1/2"(Φ13.5), 5/8"(Φ17.5), 3/4"(Φ20.5)mm 3/8"(Φ10.5), 1/2"(Φ13.5), 5/8"(Φ17.5), 3/4"(Φ20.5)mm 3/8"(Φ10.5), 1/2"(Φ13.5), 5/8"(Φ17.5), 3/4"(Φ20.5)mm



Tags:

lineman hand tools,

electrical lineman tools,

power lineman tools
