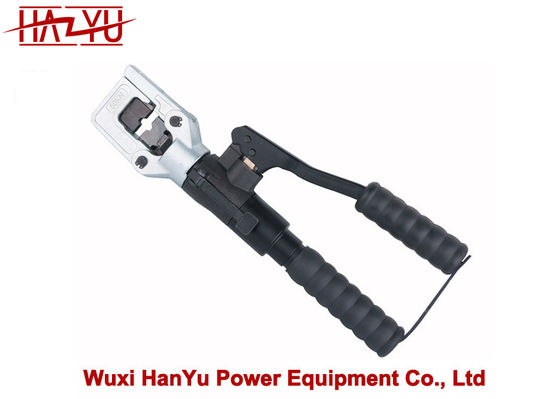

Quick Replacement Hydraulic Crimper Power Hydraulic Crimping Tool
  • name
  • name

Quick Replacement Hydraulic Crimper Power Hydraulic Crimping Tool

MOQ: 50pieces
Price: Negotiable
Standard Packaging: CASE
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
HT-51
Length:
380mm
Crimping Range:
10-240mm2
Crimping Force:
60KN
Stroke:
15mm
Crimping Type:
Hexagon
Type:
Hydraulic Crimping Tool
Highlight:

Quick Replacement Hydraulic Crimper

,

Power Hydraulic Crimping Tool

,

Quick Replacement Hydraulic Crimping Tool

Product Description

Lineman Tools HT-51 Quick Replacement Power Hydraulic Crimping Tool



Safety Valve Inside

Model HT-51
Crimping range 10-240mm2
Crimping force 60KN
Crimping type Hexagon
Stroke 15mm
Length 380mm
Weight 2.75kg
Package Plastic case
Standard accessories 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm2



General features:

New design two speed hydraulic tool light weight and compact, this tool is ideal for working in confined spaces.

Having the benefit of spring loaded handles the dies can be advanced using only one hand, therefore leaving the other hand free to position the connector.

For ease of operation and comfort of the operator, the tool head can be fully rotated through 180 degrees.

The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and a pressure is reached, and a pressure release system can easily be operated at any stage of the compression.

Quick Replacement Hydraulic Crimper Power Hydraulic Crimping Tool 0

Tags:

lineman hand tools,

electrical lineman tools,

power lineman tools
