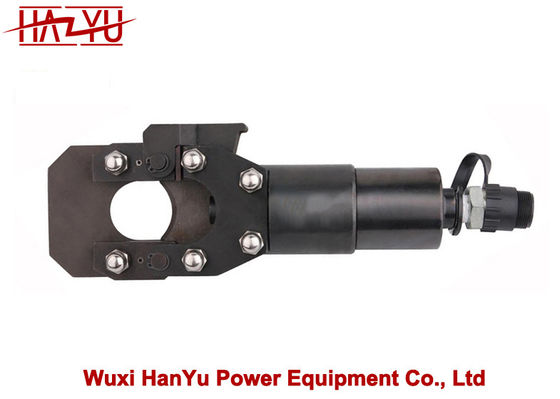

Portable Hand Cable Cutter 70KN Hydraulic Cable Cutter Lineman Hand Tools
  • name
  • name

Portable Hand Cable Cutter 70KN Hydraulic Cable Cutter Lineman Hand Tools

MOQ: 50pieces
Price: Negotiable
Standard Packaging: CASE
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
CPC-40B
Type:
Hydraulic Portable Hand Cable Cutter
Cutting Force:
70KN
Size:
355*90*195mm
Length:
300mm
Weight:
3.0kg
Cutting Range :
Steel Wire Φ25mm
Highlight:

portable hand cable cutter

,

hand cable cutter 70kn

,

70kn hydraulic cable cutter

Product Description

Lineman Tools Multi Function Manual Hydraulic Portable Hand Cable Cutter



General features

  • The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
  • The head can be easily opened to allow the cutting of running cables.
  • Hydraulic cutting head complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.

Technical Data

Model CPC-20H CPC-30H CPC-40B CPC-50B
Cutting force 40KN 70KN 70KN 90KN
Cutting range Steel wire Φ20mm Tel cable or Al/Cu Cable Φ30mm Steel wire Φ25mm Steel wire Φ30mm
Tel cable or Al/Cu Cable Φ20mm Al/Cu Cable Φ40mm Al/Cu Cable Φ50mm
ACSR Φ18mm ACSR Φ40mm ACSR Φ50mm
Length 420mm 525mm 300mm 310mm
Weight 3.0kg 4.0kg 3.0kg 3.2kg
Package Steel case Steel case Steel case Steel case
Size     355*90*195mm 355*90*195mm



Portable Hand Cable Cutter 70KN Hydraulic Cable Cutter Lineman Hand Tools 0
