Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools
  • name
  • name

Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools

MOQ: 50pieces
Price: Negotiable
Standard Packaging: Fabric bag
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
J-30
Type:
Copper Ratchet Armoured Cable Wire Cutter
Cutting Range:
Cutting Off Steel Wire Ropes Smaller Than 100mm2 And ACSR Small Than 630mm2
Weight:
3.5kg
Size:
400(580)*160*60mm
Material:
High Strength Special Steel
Usage:
Cable Wire
Highlight:

ratchet armoured cable cutter

,

hand armoured cable cutter

,

hand armoured cable cutting tools

Product Description

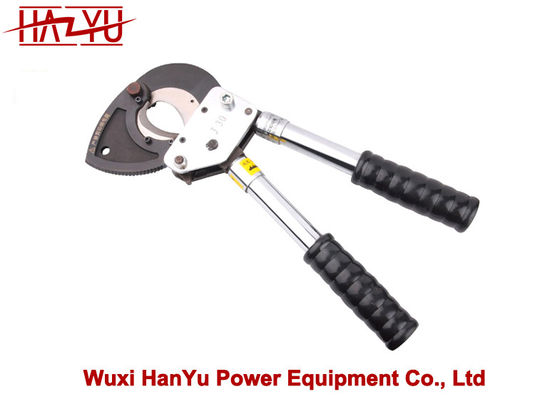

Lineman Tools J-30 Hand Copper Ratchet Armoured Cable Wire Cutter



General features

  • Ratchet cable cutter with handiness & save labour.
  • The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
  • The blades can sharpen or replace
  • The handle can be extended as your requirement



Technical Data
Model J-40B J-30 J-40
Cutting range Cutting off Cu/Al cable smaller than 240mm2 Cutting off steel wire ropes smaller than 100mm2 and ACSR small than 630mm2 Cutting off Cu/Al armored cable smaller than 300mm2 and 1000pairs of communication cables
Weight 0.65kg 3.5kg 1kg
Package Fabric bag Fabric bag Fabric bag
Size 350(510)*120*45mm 400(580)*160*60mm 330*120*35mm



Hand Copper Ratchet Armoured Cable Cutter Armoured Cable Cutting Tools 0



Other Model
Model XD-40 XD-520A XD-J-40 XD-75A XD-100A XD130A
Cutting range Cutting off Cu/Al cable smaller than 300mm2 Cutting off Cu/Al cable smaller than 600mm2 Cutting off ACSR cable smaller than 800mm2 Cutting off ACSR cable smaller than 800mm2 Al/Cu cable max.Φ100mm Al/Cu cable max.Φ130mm
    ACSR 32mm Strands steel wire smaller than 120mm2 Strands steel wire smaller than 120mm2 Armored cable max.Φ100mm Armored cable max.Φ130mm
    Bolt Φ10mm
    Steel wire ropes Φ8-16
Length   325-425mm 350-450mm 350-450mm 550-730mm 600-900mm
Weight 2.0kg 1.9kg 2.6kg 2.6kg 6.8kg 7.0kg
Package Plastic case Fabric bag Fabric bag Fabric bag Fabric bag Steel case
Size 240*40*50mm 33*15*5.5cm 38*17*16cm 38*17*16cm 55*27*6.5cm 60*31.5*9.5cm
