Name: Super Thin Single Acting Hydraulic Steel Cylinder Lineman Tools RMC-101
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: RMC-101
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

RMC-101

Type:

Super Thin Single Acting Hydraulic Steel Cylinder

Tonnage:

10T

Stroke:

11mm

Oil Capacity:

16cc

Closed Height:

45mm

Weight:

1.5kg

Highlight:

Single Acting Hydraulic Steel Cylinder

Super Thin Hydraulic Steel Cylinder

Product Description

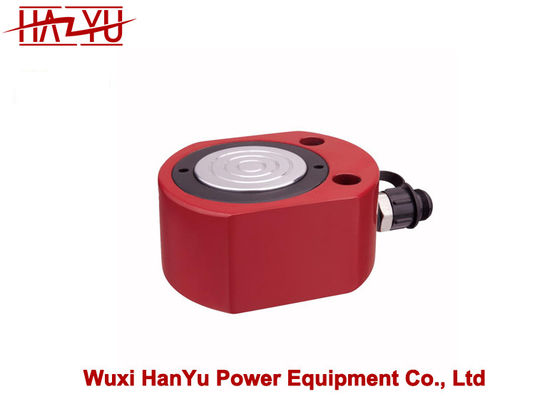

Lineman Tools RMC-101 Super Thin Single Acting Hydraulic Steel Cylinder

Super Thin Single Acting Hydraulic Steel Cylinder

It portable structure is easy for carrying. Two holes on its surface are uesd for fastening;
Its surface is processed with baking varnish, with high glaze and non-easy rushing;
Piston is made of high carbon steel and is also processed through hard chrome plating to protect oil ring and extend service lifetime;
Joint is furnished with anti-dust cover to prevent screw tooth from being impacted.

Single-hole type: Spring device is installed inside to automatically draw back.

Model	Tonnage(T)	Stroke(mm)	Oil capacity(cc)	Closed height(mm)	Weight(kg)	Volume(cm)
RMC-101	10	11	16	45	1.5	156.55
RMC-201	20	12	34	52	2.6	16.58.56
RMC-301	30	14	58	58	3.9	18.5106.5
RMC-501	50	16	102	68	6.3	21127.5
RMC-1001	100	16	200	88	14.5	251710

Principal axis(avoid axis break when it is overloading)
Shopping ring(to protect the cylinder when the stroke get to top, absorb heaviness on the other side.)
Spring(provide the capability of quick flexing)
Brass ring(use high quality of brass to joint, to protect the status of overloading and absorb heaviness on the other side.)
Cylinder wall and principal axis(they can avoid eroding and less friction by chrome plate)

Super Thin Single Acting Hydraulic Steel Cylinder Lineman Tools RMC-101 0
