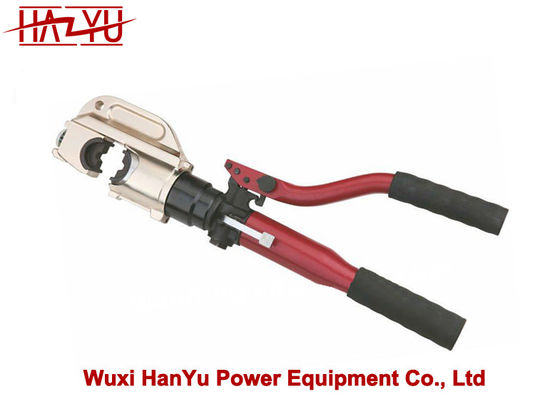

Name: Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: HT-12030
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

HT-12030

Type:

Hydraulic Cable Lug Crimping Tool

Crimping Force:

120KN

Length:

545mm

Crimping Type:

Hexagon

Crimping Range:

16-300mm2

Stroke:

32mm

Highlight:

hydraulic lineman tools

hydraulic lineman hand tools

120kn lineman tools

Product Description

Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool

Quick Details
Head Design: Crimping head, Rotates 180°, flip top style Hand-load Button: Manual retract in case of need Handle: High tensile aluminum alloy handiness Handle grip: Prevent-slip handle

Model	HT-12030
Crimping range	16-300mm2
Crimping force	120KN
Crimping type	Hexagon
Stroke	32mm
Length	545mm
Weight	6.5kg
Package	Aluminium alloy code case
Standard accessories	35, 50, 70, 95, 120, 150, 185, 240, 300mm2

General features
The tool has stages speed of the ram and automatically switches from a fast advancing speed of dies to a slower crimping speed. For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees. The tool is provided with max pressure valve, when the max pressure is activated and a “click” is heard to warn the operator stopping working. With interchangeable crimping dies with multiple crimping geometry’s.

Lineman Tools HT-12030 Heavy Duty Hydraulic Cable Lug Crimping Tool 0

Other Model

Model	HT-300	HT-12032	HT-12038	HT-13042
Crimping range	16-300mm2	16-400mm2	16-400mm2	16-400mm2
Crimping force	60KN	120KN	120KN	130KN
Crimping type	Hexagon	Hexagon	Hexagon	Hexagon
Stroke	17mm	32mm	38mm	42mm
Length	460mm	552mm	560mm	560mm
Weight	3.3kg	6.5kg	6.8kg	7.0kg
Package	Aluminium alloy code case	Aluminium alloy code case	Aluminium alloy code case	Aluminium alloy code case
Standard accessories	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2	50, 70, 95, 120, 150, 185, 240, 300, 400mm2	50, 70, 95, 120, 150, 185, 240, 300, 400mm2	50, 70, 95, 120, 150, 185, 240, 300, 400mm2
