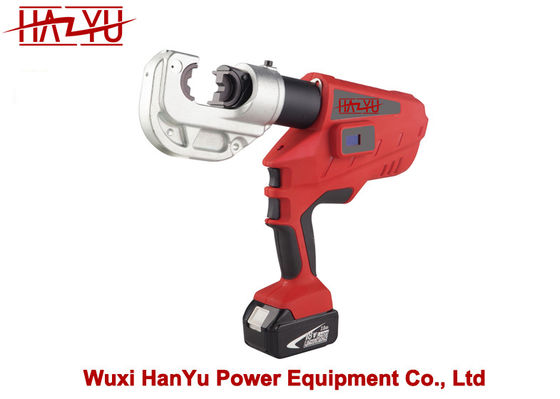

Name: Multifunctional Cable Battery Crimping Tool Lineman Tools NEC-400
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: NEC-400
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	CASE
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

NEC-400

Type:

Electric Battery Crimping Tool For Cable

Capacity:

3.0Ah

Crimping Range:

16-400mm2

Crimping Force:

130KN

Stroke:

42mm

Crimping Die:

16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2

Highlight:

Multifunctional Cable Battery Crimping Tool

Battery Crimping Tool Lineman Tools

Lineman Tools NEC-400

Product Description

Lineman Tools NEC-400 Multi-functional Battery Crimping Tool For Cable

Battery Crimping Tool
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.

Model	NEC-400
Crimping force	130KN
Crimping range	16-400mm2
Stroke	42mm
Crimp/charge	120times (Cu150mm2)
Crimping cycle	10-20s (depend on the size of cable)
Voltage	18V
Capacity	3.0Ah
Charging time	45minutes
Package	Plastic case
Crimping die	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Battery	2pcs
Charger	1pc (AC110-240V,50-60Hz)
Sealing ring of cylinder	1set
Sealing ring of safety valve	1set

Battery Multi-Functional Tool
① Head rotates 360°
② OLED Display (Crimp Times, Pressure, Voltage)
③ LED Light
④ Emergency Pressure Release Button
⑤ All tools can be controlled by one trigger
⑥ Ergonomic design for one hand operation. Micro computer control system-automatically detect the pressure
⑦ Li-ion lower power weight ratio with 50% more capacity and shorter charging cycles
