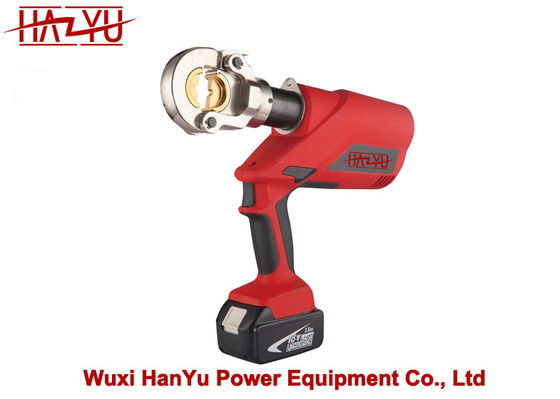

Crimping Force Lineman Tools 60KN EC-300 Battery Crimping Tool
  • name
  • name

Crimping Force Lineman Tools 60KN EC-300 Battery Crimping Tool

MOQ: 50pieces
Price: Negotiable
Standard Packaging: CASE
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
EC-300
Type:
Battery Crimping Tool
Crimping Range:
16-300mm2
Crimping Force:
60KN
Cutting Range:
40mm Cu/Al Cable And Armoured Cable
Stroke:
17mm
Crimping Cycle:
3-6s (depend On The Size Of Cable)
Crimp/charge:
320times (Cu150mm2)
Charging Time:
45minutes
Highlight:

Crimping Force Lineman Tools

,

EC-300 Battery Crimping Tool

,

60KN Battery Crimping Tool

Product Description

Lineman Tools Crimping force 60KN EC-300 Battery Crimping Tool



General features:

The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.

A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.

The crimping head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.



Model EC-300
Crimping force 60KN
Crimping range 16-300mm2
Stroke 17mm
Crimp/charge

320times

(Cu150mm2)
Crimping cycle

3-6s

(depend on the size of cable)
Voltage 18V
Capacity 3.0Ah
Charging time 45minutes
Package Plastic case
Crimping die 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
Battery 2pcs
Charger

1pc

(AC110-240V,50-60Hz)
Sealing ring of cylinder 1set
Sealing ring of safety valve 1set





Crimping Force Lineman Tools 60KN EC-300 Battery Crimping Tool 0

Battery Multi-Functional Tool

① Head rotates 350°

② LED Light

③ A manual Retraction Button

④ All tools can be controlled by one trigger

⑤ Ergonomic design for one hand operation

⑥ Micro computer control system-automatically detect the pressure

⑦ Li-ion lower power weight ratio with 50% more capacity and shorter charging cycles



Tags:

lineman hand tools,

electrical lineman tools,

power lineman tools
