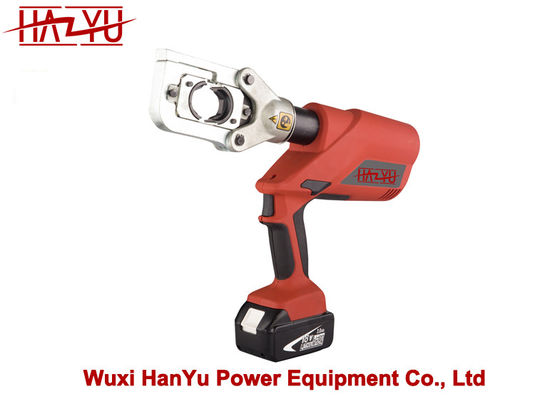

Lineman Tools Battery Crimping Tool With Cutting Crimping Punching Die
  • name
  • name

Lineman Tools Battery Crimping Tool With Cutting Crimping Punching Die

MOQ: 50pieces
Price: Negotiable
Standard Packaging: CASE
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
EC-60UNV
Type:
Battery Crimping Tool
Crimping Range:
16-300mm2
Crimping Force:
60KN
Cutting Range:
40mm Cu/Al Cable And Armoured Cable
Stroke:
42mm
Punching Range:
22.5-61.5
Crimp/charge:
160times
Working Cycle:
3-16s
Highlight:

Lineman Tools Battery Crimping Tool

,

Cutting Crimping Punching Tool

Product Description

Lineman Tools Battery Crimping Tool With Cutting Crimping Punching Die



Battery Crimping Tool

Micro computer control system-automatically detects the pressure when in crimping with double safety protect.

The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.

One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.

A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.



Technical Data

Model EC-60UNV
Crimping force 60KN
Stroke 42mm
Crimping range 16-300mm2
Cutting range 40mm Cu/Al cable and armoured cable
Punching range 22.5-61.5
Crimp/charge 160times
Working cycle 3-16s
Voltage 18V
Capacity 3.0Ah
Charging time 45minutes
Package Plastic case
Crimping die 16.25.35.50.70.95.120.150.185.240.300mm2
Punching & Die 22.5,28.3,34.6,43.2,49.6,61.5mm
Blade 1set
Adapter for crimping 1pc
Adapter for punching 1pc
3/4" Draw stud/7/16"Draw stud 1pc
Spacer 1pc
Battery 2pcs
Charger 1pc(AC110-240V,50-60Hz)
Sealing ring of cylinder 1set
Sealing ring of safety valve 1set





Lineman Tools Battery Crimping Tool With Cutting Crimping Punching Die 0

Battery Multi-Functional Tool

① Head rotates 350°

② LED Light

③ A manual Retraction Button

④ All tools can be controlled by one trigger

⑤ Ergonomic design for one hand operation

⑥ Micro computer control system-automatically detect the pressure

⑦ Li-ion lower power weight ratio with 50% more capacity and shorter charging cycles
