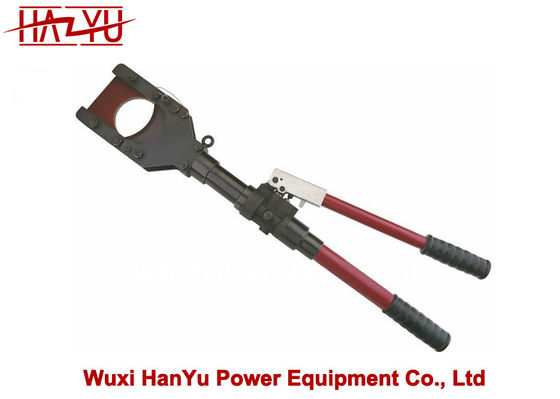

Lineman Tools CPC-85A Cutting Force 70KN Manual Hydraulic Wire Rope Cutter
  • name
  • name

Lineman Tools CPC-85A Cutting Force 70KN Manual Hydraulic Wire Rope Cutter

MOQ: 50pieces
Price: Negotiable
Standard Packaging: CASE
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
CPC-85A
Type:
CPC-85A Hydraulic Wire Cutter
Cutting Force:
70KN
Cutting Range :
Armored Cu/Al Cable Φ50mm
Length:
710mm
Weight:
7.5kg
Size:
755*130 *230mm
Highlight:

70kn lineman tools

,

70kn lineman hand tools

,

manual lineman tools

Product Description

Lineman Tools CPC-85A Cutting Force 70KN Manual Hydraulic Wire Rope Cutter



General features

  • Hand operated hydraulic tool specifically designed to cut copper, aluminium and tel cables having a max overall diameter from 40 to 85mm.
  • The head can be easily opened to allow the cutting of running cables.
  • The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
  • The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the cable and a slower more powerful speed for cutting.
Model CPC-40A CPC-50A CPC-85A HT-40A HT-50A CPC-50C CPC-20A CPC-30A CC-50A
Cutting force 70KN 70KN 70KN 70KN 70KN 70KN 40KN 70KN 80KN
Cutting range Steel wire Φ25mm Steel wire Φ30mm Armored Cu/Al cable Φ50mm Steel wire Φ25mm Steel wire Φ30mm Electrical wire Φ50mm Steel wire Φ20mm Tel cable or Al/Cu Cable Φ30mm Electrical wire Φ50mm
Al/Cu Cable Φ40mm Al/Cu Cable Φ50mm Al/Cu Cable Φ85mm Al/Cu Cable Φ40mm Al/Cu Cable Φ50mm Tel cable or Al/Cu Cable Φ50mm Tel cable or Al/Cu Cable Φ20mm Tel cable or Al/Cu Cable Φ50mm
ACSR Φ40mm ACSR Φ50mm ACSR Φ40mm ACSR Φ50mm ACSR Φ50mm ACSR Φ18mm ACSR Φ40mm
Length 650mm 660mm 710mm 650mm 620mm 570mm 420mm 525mm 610mm
Weight 6.0kg 6.0kg 7.5kg 6.0kg 6.2kg 6.0kg 3.0kg 4.0kg 6.0kg
Package Plastic case Plastic case Steel case Plastic case or Steel case Plastic case or Steel case Plastic case Steel case Steel case Steel case
Size

755*130

*230mm

755*130

*230mm

755*130

*230mm

755*130

*230mm

755*130*

230mm



657*95

*170mm



Lineman Tools CPC-85A Cutting Force 70KN Manual Hydraulic Wire Rope Cutter 0
