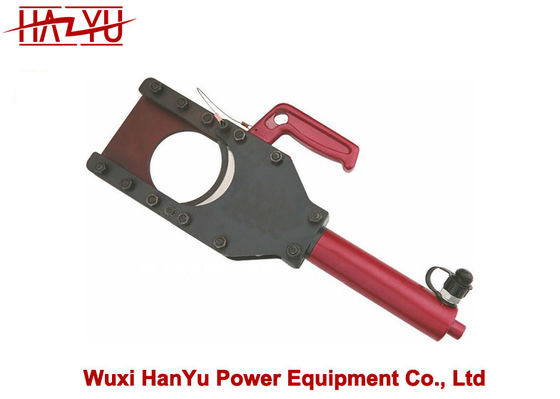

Lineman Tools CPC-100A Hydraulic Steel Cable Cutter Wire Rope Cutting Tool
  • name
  • name

Lineman Tools CPC-100A Hydraulic Steel Cable Cutter Wire Rope Cutting Tool

MOQ: 50pieces
Price: Negotiable
Standard Packaging: CASE
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
CPC-100A
Type:
Hydraulic Steel Cable Cutter
Cutting Force:
90KN
Cutting Range :
Armored Cu/Al Cable Φ75mm
Length:
590mm
Weight:
13kg
Size:
600*90*240mm
Highlight:

hydraulic lineman tools

,

hydraulic lineman hand tools

Product Description

Lineman Tools CPC-100A Hydraulic Steel Cable Cutter Wire Rope Cutting Tool



Model CC-50B CPC-85H CPC-100A TC-130HE CPC-132H/SC CPC-150H/SC
Cutting force 120KN 70KN 90KN 12T 150KN 150KN
Cutting range Electrical wire Φ50mm Armored Cu/Al cable Φ85mm Armored Cu/Al cable Φ75mm Armored cable Φ130mm Al/Cu cable Φ132mm Al/Cu cable Φ150mm
Tel cable or Al/Cu cable Φ50mm Al/Cu cable Φ85mm Al/Cu cable Φ100mm Al/Cu cable Φ130mm ACSR Φ132mm ACSR Φ150mm
Length 445mm 410mm 590mm 660mm Approx.680mm Approx.700mm
Weight 6.0kg 6.5kg 13kg 13.5kg Approx.17kg Approx.19kg
Package Steel case Steel case Wooden carton Wooden carton Steel case Steel case
Size

355*90*195

mm

85*22*300

mm

600*90*240

mm

650*195*75

mm





The blades are manufactured from high strength special steel, heat treated to ensure a long service life.

The head can be easily opened to allow the cutting of running cables.

Hydraulic cutting head complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.



Lineman Tools CPC-100A Hydraulic Steel Cable Cutter Wire Rope Cutting Tool 0
