Name: Lineman Tools XD130A Cable Wire Cutter Cutting Range Al/Cu Cable Max.Φ130mm
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: XD130A
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	Fabric bag
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

XD130A

Type:

Copper Ratchet Armoured Cable Wire Cutter

Length:

600-900mm

Material:

High Strength Special Steel

Cutting Range:

Al/Cu Cable Max.Φ130mm

Size:

60*31.5*9.5cm

Weight:

7.0kg

Highlight:

ratchet lineman tools

ratchet lineman hand tools

Product Description

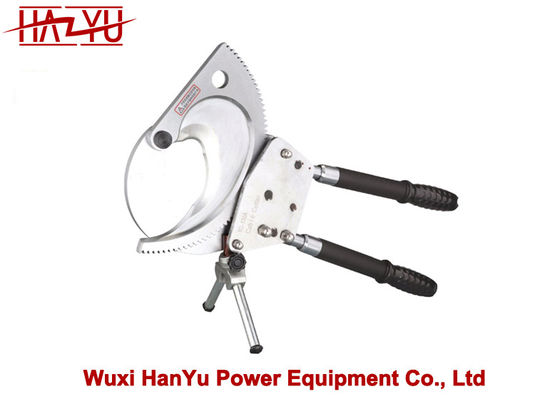

Lineman Tools XD130A Cable Wire Cutter Cutting Range Al/Cu Cable Max.Φ130mm

General features
Ratchet cable cutter with handiness & save labour.
The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
The blades can sharpen or replace
The handle can be extended as your requirement
Technical Data
Model	XD-40	XD-520A	XD-J-40	XD-75A	XD-100A	XD130A	J-40B	J-30	J-40
Cutting range	Cutting off Cu/Al cable smaller than 300 mm2	Cutting off Cu/Al cable smaller than 600 mm2 ACSR 32mm Bolt Φ10 mm Steel wire ropes Φ8-16	Cutting off ACSR cable smaller than 800 mm2 Strands steel wire smaller than 120 mm2	Cutting off ACSR cable smaller than 800 mm2 Strands steel wire smaller than 120 mm2	Al/Cu cable max. Φ100 mm Armored cable max. Φ100 mm	Al/Cu cable max. Φ130 mm Armored cable max. Φ130 mm	Cutting off Cu/Al cable smaller than 240mm2	Cutting off steel wire ropes smaller than 100mm2 and ACSR small than 630mm2	Cutting off Cu/Al armored cable smaller than 300mm2 and 1000pairs of communication cables
Length		325-425mm	350-450mm	350-450mm	550-730mm	600-900mm
Weight	2.0kg	1.9kg	2.6kg	2.6kg	6.8kg	7.0kg	0.65kg	3.5kg	1kg
Package	Plastic case	Fabric bag	Fabric bag	Fabric bag	Fabric bag	Steel case	Fabric bag	Fabric bag	Fabric bag
Size	24040 50 mm	3315 5.5 cm	3817 16 cm	3817 16 cm	5527 6.5 cm	6031.5 9.5 cm	350(510) 12045 mm	400(580) 16060 mm	33012035 mm

Lineman Tools XD130A Cable Wire Cutter Cutting Range Al/Cu Cable Max.Φ130mm 0
