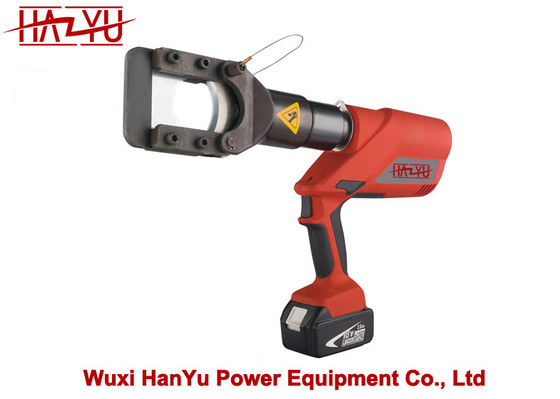

Lineman Tools EC-40A Electrical Battery Powered Hydraulic Cable Cutter
  • name
  • name

Lineman Tools EC-40A Electrical Battery Powered Hydraulic Cable Cutter

MOQ: 20pieces
Price: Negotiable
Standard Packaging: Case
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 3000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
EC-40A
Type:
EC-40A Battery Cable Cutter
Cutting Range:
40mm ACSR Cable
Cutting Force:
70KN
Stroke:
42mm
Voltage:
18V
Capacity:
3.0Ah
Highlight:

hydraulic lineman tools

,

18v lineman tools

,

18v hydraulic cable cutter

Product Description

Lineman Tools EC-40A Electrical Battery Powered Hydraulic Cable Cutter



EC-40A, Battery cable cutter for Φ40mm Cu/Al cable and armored cable

EC-50A, Battery cable cutter for Φ50mm Cu/Al cable and armored cable

EC-65C, Battery cable cutter for Φ65mm Cu/Al cable and armored cable

EC-85A, Battery cable cutter for Φ85mm Cu/Al cable and armored cable

EC-2432A, Battery screw cutter for M14-M24



Technical Data
Model EC-40A EC-50A EC-65C EC-85A EC-2432A
Cutting force 70KN 70KN 120KN 60KN 120KN
Cutting range

40mm

Cu/Al cable

and

armored cable

50mm

Cu/Al cable

and

armored cable

65mm

Cu/Al cable

and

armored cable

85mm

Cu/Al cable

and

armored cable

 M14-M24

40mm

ACSR cable

50mm

ACSR cable


Stroke 42mm 52mm 42mm 92mm 32mm
Voltage 18V 18V 18V 18V 18V
Capacity 3.0Ah 3.0Ah 3.0Ah 3.0Ah 3.0Ah
Charging time 45minutes 45minutes 45minutes 45minutes 45minutes
Package Plastic case Plastic case Plastic case Plastic case Plastic case
Accessories
Blade 1set 1set 1set 1set 1set
Battery 2pcs 2pcs 2pcs 2pcs 2pcs
Charger

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

Sealing ring

of cylinder

 1set 1set 1set 1set 1set

Sealing ring

of safety valve

 1set 1set 1set 1set 1set

Lineman Tools EC-40A Electrical Battery Powered Hydraulic Cable Cutter 0

① One key control

② Cutting head rotates 350°

③ Two stage hydraulics

④ Shorter charging cycles

⑤ Automatic retraction when crimp is completed

⑥ Battery power display
