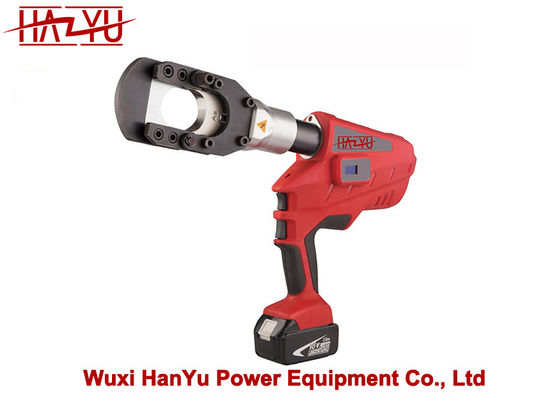

Lineman Tools Cable Cutter NEC-50A Battery Powered Cable Cutting Tool
  • name
  • name

Lineman Tools Cable Cutter NEC-50A Battery Powered Cable Cutting Tool

MOQ: 30pieces
Price: Negotiable
Standard Packaging: Case
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 3000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
NEC-50A
Type:
Battery Powered Cable Cutting Tool
Cutting Force:
70KN
Stroke:
52mm
Cutting Range:
50mm ACSR Cable
Charging Time:
45minutes
Voltage:
18V
Highlight:

18v lineman tools

,

70kn lineman tools

,

18v lineman hand tools

Product Description

Lineman Tools Cable Cutter NEC-50A Battery Powered Cable Cutting Tool



Technical Data
Model NEC-40A NEC-50A NEC-55A NEC-85A NEC-85C
Cutting force 60KN 70KN 120KN 60KN 120KN
Cutting range

40mm

Cu/Al cable

and

armored cable

50mm

Cu/Al cable

and

armored cable

50mm

Cu/Al cable

and

armored cable

85mm

Cu/Al cable

and

armored cable

85mm

Cu/Al cable

and

armored cable

40mm

ACSR cable

50mm

ACSR cable

50mm

ACSR cable
Stroke 42mm 52mm 60mm 92mm 41mm
Voltage 18V 18V 18V 18V 18V
Capacity 3.0Ah 3.0Ah 3.0Ah 3.0Ah 3.0Ah
Charging time 45minutes 45minutes 45minutes 45minutes 45minutes
Package Plastic case Plastic case Plastic case Plastic case Plastic case
Accessories
Blade 1set 1set 1set 1set 1set
Battery 2pcs 2pcs 2pcs 2pcs 2pcs
Charger

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

1pc

(AC110-240V,

50-60Hz)

Sealing ring

of cylinder

 1set 1set 1set 1set 1set

Sealing ring

of safety valve

 1set 1set 1set 1set 1set
  1. NEC-40A, Battery cable cutter for Φ40mm Cu/Al cable and armored cable
  2. NEC-50A, Battery cable cutter for Φ50mm Cu/Al cable and armored cable
  3. NEC-55A, Battery cable cutter for Φ55mm Cu/Al cable and armored cable
  4. NEC-85A, Battery cable cutter for Φ85mm Cu/Al cable and armored cable
  5. NEC-85C, Battery cable cutter for Φ85mm Cu/Al cable and armored cable



The most professional manufacture in china

From hydraulic to ratchet, get the tool to cut different kind of cables, check out our cable cutter selection guides to help you make the right choice.

Choose a powerful cable cutter, you know you’ll make the cut with tool.



Lineman Tools Cable Cutter NEC-50A Battery Powered Cable Cutting Tool 0

① OLED display

② One key control

③ Cutting head rotates 350°

④ Two stage hydraulics

⑤ Shorter charging cycles

⑥ Automatic retraction when crimp is completed

⑦ Battery power display
