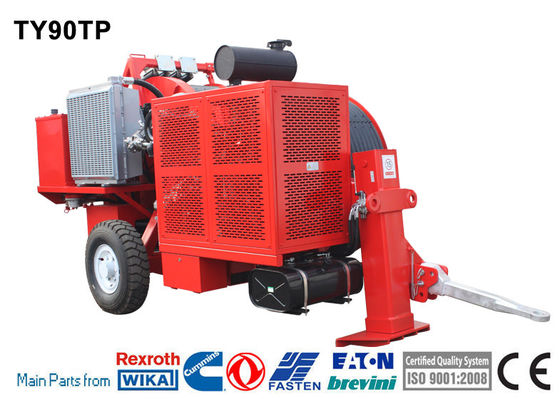

Electronically Controlled Hydraulic Cable Puller Tensioner Stringing Equipment
  • name
  • name

Electronically Controlled Hydraulic Cable Puller Tensioner Stringing Equipment

MOQ: 1set
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY90TP
Max Tension:
90kN
Max Pull:
90kN
Pull At Max Speed:
44kN
Max Conductor Diameter:
40mm
Diesel:
118kw(158hp)
Type:
TY90TP Hydraulic Cable Puller Tensioner
Hydraulic Pump:
German Rexroth
Operating Handle:
German Rexroth
Highlight:

Electronically Controlled Hydraulic Cable Puller

,

Cable Puller Tensioner Stringing Equipment

,

Hydraulic Cable Puller Stringing Equipment

Product Description

Power Line Tools TY90TP Hydraulic Cable Puller Tensioner Max Speed 5km/H

Hydraulic Puller-Tensioner

  • The machine is suitable to string one or two ropes or bundled conductors.
  • The bull-wheel grooves are made of high resistance interchangeable nylon sectors.
  • The machine is completely electronically controlled.
Characteristics
  • Bull-wheel diameter: 1500mm
  • Max conductor diameter: 40mm
  • Max rope diameter : 18mm
  • Groove number: 10
  • Total weight: 6800kg
  • Overall dimension (length*width*height): 4700×2300×2700mm



Performance

Puller

  • Max pull: 90kN
  • Speed at max pull: 2.4km/h
  • Max speed: 5km/h
  • Pull at max speed: 44kN

Tensioner

  • Max tension: 90kN
  • Max speed: 5km/h



Hydraulic Transmission
  • Closed hydraulic circuit for step less speed variation in both rotating directions.
  • This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Main configuration
  • Engine: Cummins
  • Hydraulic pump: German Rexroth
  • Hydraulic meter: German WIKA
  • Main motor: German Rexroth
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Operating handle: German Rexroth




Configuration
  • Negative self-acting hydraulic brakes
  • Hydraulic front stabilizer
  • Grounding connection point
  • Rigid axles for towing at max speed of 15km/h with mechanical parking brake
  • Hydraulic dynamometers with set-point and automatic control of maximum pull
  • Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
  • Rigid axles for towing at max speed of 15km/h with mechanical parking brake
  • Hydraulic oil cooling system
  • Digital meter counters
  • Control instruments for hydraulic system and diesel engine



Engine
  • Diesel: 118kw(158hp)
  • Cooling system: water
  • Electrical system: 24V



Additional Devices
  • Lighting system for the trailer
  • Digital speed and meter counter
  • 2 hydraulic rope/conductor clamp(extra charge)
  • Trailer for towing at max speed of 15 km/h
  • Swivel guide rope roller
