5km/H 90KN Hydraulic Puller Tensioner Transmission Line Stringing Equipment
  • name
  • name

5km/H 90KN Hydraulic Puller Tensioner Transmission Line Stringing Equipment

MOQ: 1set
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY90TP
Type:
Hydraulic Puller-Tensioner
Hydraulic Meter:
German WIKA
Max Rope Diameter:
18mm
Groove Number:
10
Max Pull:
90kN
Max Tension:
90kN
Speed At Max Pull:
2.4km/h
Max Speed:
5km/h
Highlight:

5km/h 90KN Hydraulic Puller Tensioner

,

Transmission Line Hydraulic Puller Tensioner

Product Description

90KN Hydraulic Puller Tensioner With Water Cooling System Diesel Engine

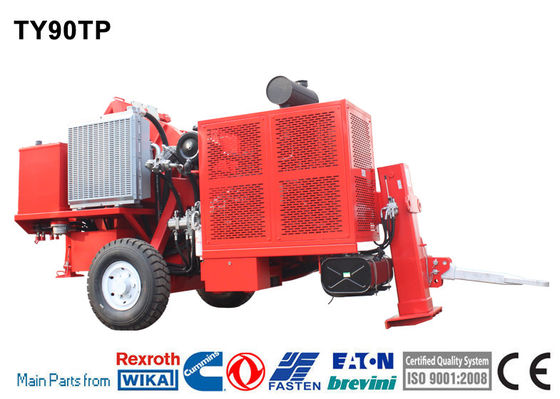

TY90TP Hydraulic Puller-Tensioner
  • The machine is suitable to string one or two ropes or bundled conductors. The bull-wheel grooves are made of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.
Performance

Puller

  • Max pull: 90kN
  • Speed at max pull: 2.4km/h
  • Max speed: 5km/h
  • Pull at max speed: 44kN

Tensioner

  • Max tension: 90kN
  • Max speed: 5km/h
Characteristics
  • Bull-wheel diameter: 1500mm
  • Max rope diameter : 18mm
  • Groove number: 10
  • Max conductor diameter: 40mm
  • Total weight: 6800kg
  • Overall dimension (length*width*height): 4700×2300×2700mm
Engine
  • Diesel: 118kw(158hp)
  • Cooling system: water
  • Electrical system: 24V
Main configuration
  • Engine: Cummins
  • Hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Hydraulic meter: German WIKA
  • Operating handle: German Rexroth
Configuration
  • Negative self-acting hydraulic brakes
  • Hydraulic dynamometers with set-point and automatic control of maximum pull
  • Hydraulic oil cooling system
  • Digital meter counters
  • Control instruments for hydraulic system and diesel engine
  • Rigid axles for towing at max speed of 15km/h with mechanical parking brake
  • Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
  • Hydraulic front stabilizer
  • Grounding connection point
Hydraulic Transmission
  • Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Additional Devices
  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp(extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 15 km/h
  • Digital speed and meter counter
