Name: TY90TP Hydraulic Cable Puller Tensioner For Powerline Construction
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY90TP
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY90TP

Type:

Cable Hydraulic Puller Tensioner

Max Rope Diameter:

18mm

Max Tension:

90kN

Max Pull:

90kN

Max Speed:

5km/h

Speed At Max Pull:

2.4km/h

Pull At Max Speed:

44kN

Overall Dimension (length*width*height):

4700×2300×2700mm

Highlight:

TY90TP Hydraulic Cable Puller

Powerline Cable Puller Tensioner

Construction Hydraulic Cable Puller

Product Description

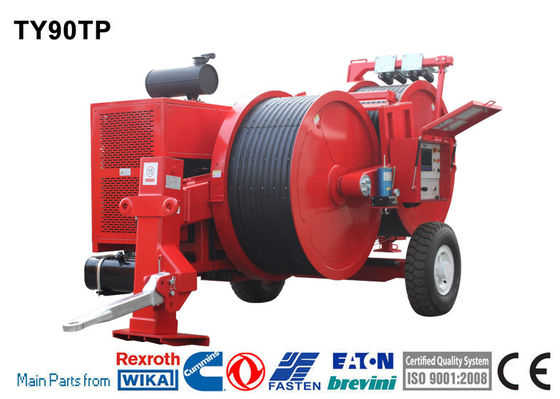

TY90TP Cable Hydraulic Puller Tensioner For Powerline Construction

TY90TP Hydraulic Puller-Tensioner	The machine is suitable to string one or two ropes or bundled conductors. The bull-wheel grooves are made of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.
Performance	Puller Max pull: 90kN Speed at max pull: 2.4km/h Max speed: 5km/h Pull at max speed: 44kN
Performance	Tensioner Max tension: 90kN Max speed: 5km/h
Hydraulic Transmission	Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Characteristics	Bull-wheel diameter: 1500mm Max rope diameter : 18mm Groove number: 10 Max conductor diameter: 40mm Total weight: 6800kg Overall dimension (lengthwidthheight): 4700×2300×2700mm
Main configuration	Engine: Cummins Hydraulic pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth / Italy Bonfiglioli Hydraulic meter: German WIKA Operating handle: German Rexroth
Engine	Diesel: 118kw(158hp) Cooling system: water Electrical system: 24V
Configuration	Negative self-acting hydraulic brakes Hydraulic front stabilizer Grounding connection point Hydraulic dynamometers with set-point and automatic control of maximum pull Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders Hydraulic oil cooling system Digital meter counters Control instruments for hydraulic system and diesel engine Rigid axles for towing at max speed of 15km/h with mechanical parking brake
Additional Devices	Lighting system for the trailer Digital speed and meter counter 2 hydraulic rope/conductor clamp(extra charge) Trailer for towing at max speed of 15 km/h Swivel guide rope roller

TY90TP Hydraulic Cable Puller Tensioner For Powerline Construction 0
