Name: German WIKA Hydraulic Puller Tensioner For Transmission Line Construction
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY90TP
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY90TP

Type:

Stringing Equipment Hydraulic Puller-Tensioner

Diesel:

118kw(158hp)

Engine:

Cummins

Hydraulic Meter:

German WIKA

Max Rope Diameter:

18mm

Groove Number:

Max Pull:

90kN

Max Tension:

90kN

Highlight:

German WIKA Hydraulic Puller Tensioner

Transmission Line Hydraulic Puller Tensioner

Construction Cable Puller Tensioner

Product Description

90KN Hydraulic Puller Tensioner For Transmission Line Construction

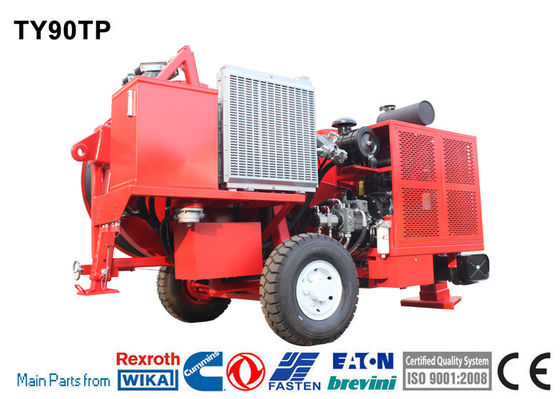

TY90TP Hydraulic Puller-Tensioner

The machine is suitable to string one or two ropes or bundled conductors. The bull-wheel grooves are made of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.

Performance

Puller

Max pull: 90kN
Speed at max pull: 2.4km/h
Max speed: 5km/h
Pull at max speed: 44kN

Tensioner

Max tension: 90kN
Max speed: 5km/h

Characteristics

Bull-wheel diameter: 1500mm
Max rope diameter : 18mm
Groove number: 10
Max conductor diameter: 40mm
Total weight: 6800kg
Overall dimension (length*width*height): 4700×2300×2700mm

Engine

Diesel: 118kw(158hp)
Cooling system: water
Electrical system: 24V

Main configuration

Engine: Cummins
Hydraulic pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth / Italy Bonfiglioli
Hydraulic meter: German WIKA
Operating handle: German Rexroth

Configuration

Negative self-acting hydraulic brakes
Hydraulic dynamometers with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Digital meter counters
Control instruments for hydraulic system and diesel engine
Rigid axles for towing at max speed of 15km/h with mechanical parking brake
Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
Hydraulic front stabilizer
Grounding connection point

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

Lighting system for the trailer
2 hydraulic rope/conductor clamp(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 15 km/h
Digital speed and meter counter
