Name: TYSHSN Bundled Stringing Pulley Three Wheel Nylon Conductor Pulley
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: SHSN-508X75
Availability: InStock

MOQ:	10pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	2000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

SHSN-508X75

Conductor Size:

≤400mm2

Wheel Size Outside Dia. X Width:

508X75mm

Weight:

42kg

Rated Load:

16kN

Wheel Material:

Nylon

Type:

Three Wheel Nylon Conductor Stringing Block Pulley

Highlight:

TYSHSN Bundled Stringing Pulley

Three Wheel Nylon Conductor Pulley

Product Description

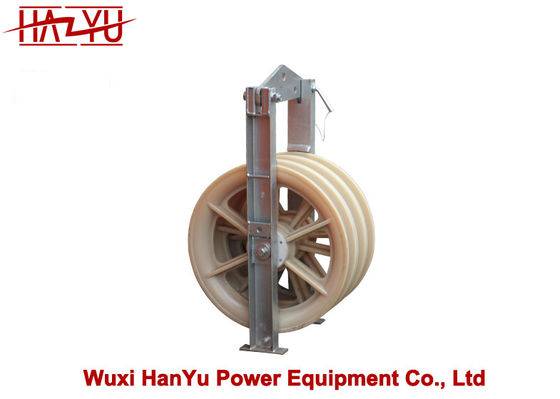

Stringing Pulley TYSHSN Bundled Three Wheel Nylon Conductor Pulley

TYSHSN Three Nylon Conductor Pulleys

The pulleys are suitable for string two or three bundled conductor lines.

Model	Wheel size Outside Dia. x Width (mm)	Conductor size (mm2)	Rated load (kN)	Weight (kg)	Wheel material
SHS-508X75	508X75	≤400	40	85.5	Middle steel Two Nylon
SHS-660X100	660X100	≤500	20	106	Middle steel Two Nylon
SHSN-508X75	508X75	≤400	16	42	Nylon
SHSN-508X100	508X100	≤400	25	47	Nylon
SHSN-660X100	660X100	≤500	40	85	Nylon
SHSN-822X110	822X110	≤630	60	100	Nylon
SHSN-916X110	916X110	≤800	80	140	Nylon
SHSN-1040X125	1040X125	≤1000	110	210	Nylon
SHSN-1160X150	1160X150	≤1250	120	245	Nylon
SHSNN-255X110	255X110	≤630	50	120	Nylon
SHSNN-325X150	325X150	≤1250	120	165	Nylon

Features:

1. Used for spreading wires in overhead transmission lines

2. Can be used for single split wires, double split wires, four split wires, six split wires, ect.

3. Sheave diameter have 508mm, 660mm, 822mm, 916mm, 1040mm, 1160mm

4. Sheave material have MC nylon and rubber lined aluminium

5. For multi-wheel pulley, middle wheel can be cast steel wheel or MC nylon wheel

Durable Construction: Our nylon sheave pulley is made from high-quality stainless steel, ensuring a long-lasting and resistant product that can withstand heavy use in various industries such as building material shops, manufacturing plants, and construction works.
Customization Options: We offer customization support for our products, including custom stringing equipment designs based on customers' drawings, allowing for a tailored solution to meet specific needs.
Heavy-Duty Capacity: With a rated load of 16kn, this pulley block is suitable for heavy-duty applications, providing reliable and efficient cable pulling and lifting.
Optional Color and Size: We provide a color and size that can be requested by our customers, ensuring a product that fits their specific requirements.
Compliance with International Standards: Our product meets the ISO 9001 certification, ensuring that it adheres to international quality standards and providing our customers with a reliable and trustworthy product.
