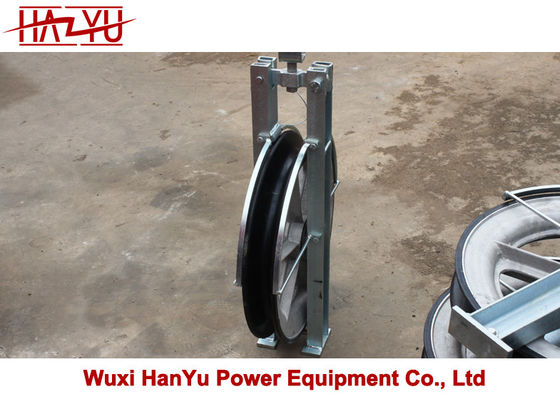

SHD-660X100 Single Conductor Pulley Stringing Pulley Aluminum Rated Load 20kN
  • name
  • name

SHD-660X100 Single Conductor Pulley Stringing Pulley Aluminum Rated Load 20kN

MOQ: 30pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 3000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
SHD-660X100
Rated Load:
20kN
Conductor Size:
≤500mm2
Weight:
30kg
Wheel Material:
Aluminum
Wheel Size Diameter X Width:
660X100mm
Type:
SHD-660X100 Single Conductor Pulleys
Highlight:

Single Conductor Pulley

,

SHD-660X100 Pulley

,

Conductor Pulley 20kN

Product Description

Stringing Pulley Aluminum SHD-660X100 Single Conductor Pulleys Rated Load 20kN



Model Wheel size Diameter x Width Weight Rated load Conductor size Wheel material
(mm) (kg) (kN) (mm2)
SHD-508X75 508X75 22.3 20 ≤400 Aluminum
SHD-660X100 660X100 30 20 ≤500 Aluminum
SHDN-508X75 508X75 18 20 ≤400 Nylon
SHDN-660X100 660X100 20 20 ≤500 Nylon
SHDN-822X110 822X110 25 30 ≤630 Nylon
SHDN-916X110 916X110 45 50 ≤800 Nylon
SHDN-1040X125 1040X125 105 55 ≤1000 Nylon
SHDN-1160X150 1160X150 155 45 ≤1250 Nylon
SHDNN-255X110 255X110 77 100 ≤630 Nylon
SHDNN-325X150 325X150 85 120 ≤1520 Nylon
TYSHD Single Aluminum Conductor Pulleys
  • Wheel material aluminum or Nylon, and it could be covered by rubber.



SHD-660X100 Single Conductor Pulley Stringing Pulley Aluminum Rated Load 20kN 0
