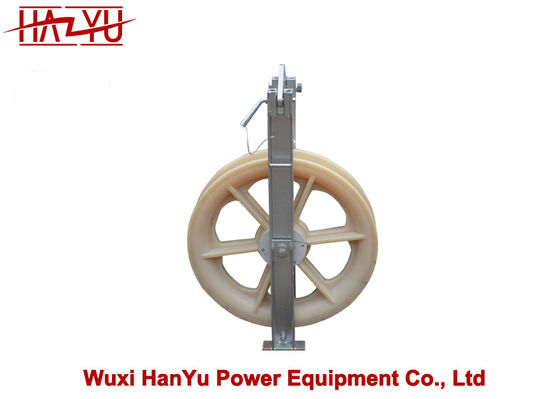

Name: Single Nylon Conductor Pulley Cable Conductor Stringing Pulley TYSHDN-508X75
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: SHDN-508X75
Availability: InStock

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	1000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

SHDN-508X75

Type:

TYSHDN Single Nylon Conductor Pulleys

Wheel Size Diameter X Width:

508X75mm

Conductor Size:

≤400mm2

Rated Load:

20kN

Weight:

18kg

Wheel Material:

Nylon

Highlight:

Single Nylon Conductor Pulley

Conductor Stringing Pulley

TYSHDN-508X75 Conductor Pulley

Product Description

Stringing Pulley Cable TYSHDN-508X75 Single Nylon Conductor Pulleys

TYSHDN Single Nylon Conductor Pulleys

Wheel material aluminum or Nylon, and it could be covered by rubber.
Model	Wheel size Diameter x Width (mm)	Conductor size (mm2)	Rated load (kN)	Weight (kg)	Wheel material
SHD-508X75	508X75	≤400	20	22.3	Aluminum
SHD-660X100	660X100	≤500	20	30	Aluminum
SHDN-508X75	508X75	≤400	20	18	Nylon
SHDN-660X100	660X100	≤500	20	20	Nylon
SHDN-822X110	822X110	≤630	30	25	Nylon
SHDN-916X110	916X110	≤800	50	45	Nylon
SHDN-1040X125	1040X125	≤1000	55	105	Nylon
SHDN-1160X150	1160X150	≤1250	45	155	Nylon
SHDNN-255X110	255X110	≤630	100	77	Nylon
SHDNN-325X150	325X150	≤1520	120	85	Nylon

Fiber optic cable nylon pulley single roller

Stringing blocks have different diameter were used to string different conductors.

Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.

Usage

Protect the cable and conductor from fricting when they are laying.They can save time and effort.

Description

1. We manufacture a lot of models for different uses in the overhead transmission line construction.

2. They have are used to support conductors,OPGW,ADSS, communicatio lines.

3. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Remarks

All kinds of pulley blocks can be manufactured according to the customers's requirements.

If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements
