20kN Triple Sheave Pulley QHN2-3 Snatch Block Pulley Aluminum Alloy

Products

Transmission Line Stringing Equipment

Overhead Line Stringing Equipment

Underground Cable Pulling Tools

hanyu_power@163.com

+86 17766397620

Contact Now

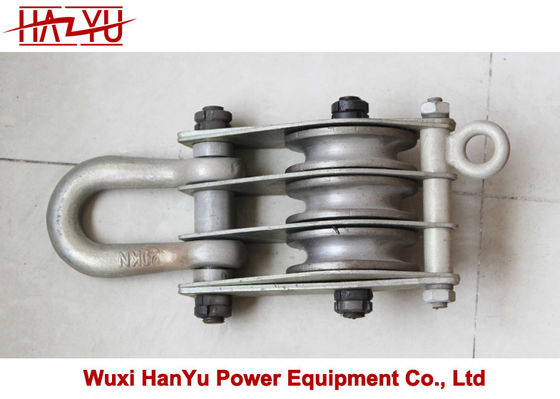

20kN Triple Sheave Pulley QHN2-3 Snatch Block Pulley Aluminum Alloy

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	5000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

QHN2-3

Type:

TYQHN Aluminum Alloy Service Snatch Blocks

Max Rope Diameter:

7.7mm

Weight:

3.7kg

Outside Diameter × Width:

100×31mn

Rated Load:

Number Of Sheaves:

Highlight:

20kN Triple Sheave Pulley

Triple Sheave Pulley QHN2-3

Snatch Block Pulley Aluminum Alloy

Product Description

Stringing Pulley QHN2-3 Lifting Tool Aluminum Alloy Service Snatch Blocks

TYQHN Aluminum Alloy Service Snatch Blocks
The service snatch blocks are supplied open or closed type. The wheels are mounted on ball bearings. Applied in line construction to craning weight ,etc. This tackle adopt aluminum alloy side panel and MC nylon sheave. Single sheave block is open.
TYQHN Aluminum Alloy Service Snatch Blocks has been used in lifting and transportation, port loading and unloading, shipbuilding, grabs, pulleys, mining machinery, metallurgical machinery, and construction safety). The updated product after the double auxiliary plate pulley has outstanding advantages, light weight, good quality, wear resistance, simple and beautiful appearance, about 40% lighter than cast pulleys of the same specification, and has outstanding advantages that cast pulleys cannot match.
TYQHN Aluminum Alloy Service Snatch Blocks is an important lifting tool, the structure is simple and convenient to use, they can change the direction of the pulley block and the wire rope frequently, they can lift or move the rotational object too,especially for the pulley block assembly,,extensive be used in construction and installation field with winch, mast or other lifting machine.
Model	Number of sheaves	Rated load (kN)	Outside diameter × width (mm)	Max rope diameter (mm)	Weight (kg)	Hoisting point type
QH1GN-1K	1	10	100×31	7.7	1.8	G	H
QHN1-2	2	10	80×27	6	1.8	G	H
QHN1-3	3	10	80×27	6	2.1	G	H
QHN2-1K	1	20	120×35	9.3	2.2	G	H	B
QHN2-2	2	20	100×31	7.7	2.6	G	H
QHN2-3	3	20	100×31	7.7	3.7	G	H
QHN3-1	1	30	150×39	22	3.4	G	H	B
QHN3-2	2	30	120×35	9.3	4.5	G	H
QHN3-3	3	30	100×31	7.7	4.6	G	H
QHN5-1K	1	50	166×40	13	5.2	G	H	B
QHN5-2	2	50	150×39	11	5.5	G	H
QHN5-3	3	50	120×35	9.3	5.1	G	H
QHN8-1K	1	80	205×49	17	7.2	G	H	B
QHN8-2	2	80	166×40	13	8.3	G	H
QHN8-3	3	80	150×39	11	7.9	G	H
QHN10-1K	1	100	246×60	18.5	11.4	G		B
QHN10-2	2	100	166×40	13	10.2		H
QHN10-3	3	100	150×39	11	11.7		H
QHN15-1K	1	150	280×65	21.5	12.1			B
QHN15-2	2	150	205×49	17	12.8		H
QHN15-3	3	150	166×40	13	11.8		H

20kN Triple Sheave Pulley QHN2-3 Snatch Block Pulley Aluminum Alloy 0

TYQHN Aluminum Alloy Service Snatch Blocks is an important lifting tool, the structure is simple and convenient to use, they can change the direction of the pulley block and the wire rope frequently, they can lift or move the rotational object too,especially for the pulley block assembly,,extensive be used in construction and installation field with winch, mast or other lifting machine.
