Aluminum Single Conductor Pulleys Stringing Pulley 500mm2 20kN
  • name
  • name

Aluminum Single Conductor Pulleys Stringing Pulley 500mm2 20kN

MOQ: 30pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 3000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
SHD-660X100
Type:
Aluminum Single Conductor Pulleys
Wheel Material:
Aluminum
Conductor Size:
≤500mm2
Weight:
30kg
Wheel Size Diameter X Width:
660X100mm
Rated Load:
20kN
Highlight:

Aluminum Single Conductor Pulleys

,

Conductor Stringing Pulley

,

500mm2 Conductor Pulley

Product Description

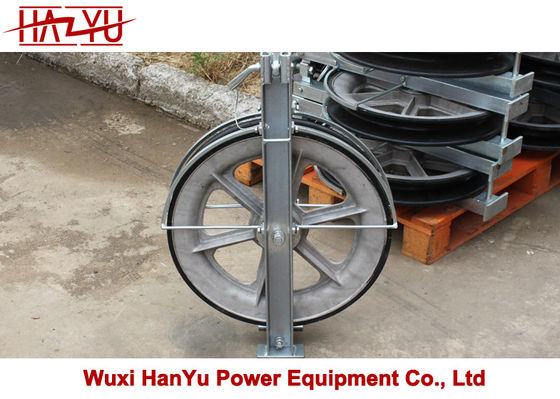

Stringing Pulley Aluminum Single Conductor Pulleys Wheel Size 660X100mm



TYSHD Single Aluminum Conductor Pulleys
  • Wheel material aluminum or Nylon, and it could be covered by rubber.
Model Wheel size Diameter x Width Weight Conductor size Rated load Wheel material
(mm) (kg) (mm2) (kN)
SHD-508X75 508X75 22.3 ≤400 20 Aluminum
SHD-660X100 660X100 30 ≤500 20 Aluminum
SHDN-508X75 508X75 18 ≤400 20 Nylon
SHDN-660X100 660X100 20 ≤500 20 Nylon
SHDN-822X110 822X110 25 ≤630 30 Nylon
SHDN-916X110 916X110 45 ≤800 50 Nylon
SHDN-1040X125 1040X125 105 ≤1000 55 Nylon
SHDN-1160X150 1160X150 155 ≤1250 45 Nylon
SHDNN-255X110 255X110 77 ≤630 100 Nylon
SHDNN-325X150 325X150 85 ≤1520 120 Nylon



Aluminum Single Conductor Pulleys Stringing Pulley 500mm2 20kN 0
