Max Pull 90kN Hydraulic Puller Tensioner For Transmission Line Stringing Equipment
  • name
  • name

Max Pull 90kN Hydraulic Puller Tensioner For Transmission Line Stringing Equipment

MOQ: 1set
Price: USD 62,500.00-65,000.00/set
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TY90TP
Type:
Hydraulic Puller Tensioner For Transmission Line
Max Tension:
90kN
Max Rope Diameter:
18mm
Max Pull:
90kN
Overall Dimension (length*width*height):
4700×2300×2700mm
Max Conductor Diameter:
40mm
Highlight:

90kN hydraulic puller tensioner

,

transmission line stringing equipment

,

hydraulic puller with high tension

Product Description

Max Pull 90kN Hydraulic Puller Tensioner For Transmission Line Stringing Equipment

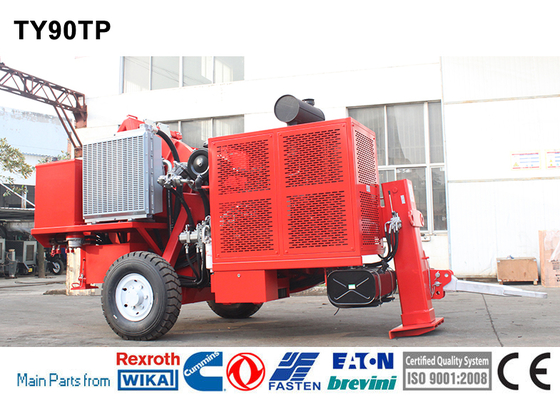

TY90TP Hydraulic Puller-Tensioner
  • The machine is completely electronically controlled.
  • The machine is suitable to string one or two ropes or bundled conductors.
  • The bull-wheel grooves are made of high resistance interchangeable nylon sectors.



Performance
Puller
  • Max pull: 90kN
  • Speed at max pull: 2.4km/h
  • Pull at max speed: 44kN
  • Max speed: 5km/h
Tensioner
  • Max tension: 90kN
  • Max speed: 5km/h



Characteristics
  • Bull-wheel diameter: 1500mm
  • Max rope diameter : 18mm
  • Max conductor diameter: 40mm
  • Groove number: 10
  • Overall dimension (length*width*height): 4700×2300×2700mm
  • Total weight: 6800kg



Main configuration
  • Engine: Cummins
  • Operating handle: German Rexroth
  • Hydraulic meter: German WIKA
  • Main motor: German Rexroth
  • Hydraulic pump: German Rexroth
  • Speed reducer: German Rexroth / Italy Bonfiglioli



Additional Devices
  • Lighting system for the trailer
  • Digital speed and meter counter
  • 2 hydraulic rope/conductor clamp(extra charge)
  • Trailer for towing at max speed of 15 km/h
  • Swivel guide rope roller



Engine
  • Diesel 118kw(158hp)
  • Cooling system water
  • Electrical system 24V



Hydraulic Transmission
  • Closed hydraulic circuit for step less speed variation in both rotating directions.
  • This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Configuration
  • Negative self-acting hydraulic brakes
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic oil cooling system
  • Digital meter counters
  • Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
  • Rigid axles for towing at max speed of 15km/h with mechanical parking brake
  • Grounding connection point
  • Hydraulic front stabilizer
  • Hydraulic dynamometers with set-point and automatic control of maximum pull



Max Pull 90kN Hydraulic Puller Tensioner For Transmission Line Stringing Equipment 0
