Name: TYDBK-150 Powerline Tools Aluminum Alloy Insulator Replacement Tool
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TYDBK-150
Availability: InStock

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	6000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TYDBK-150

Rated Load (KN):

150

Screw Stroke (mm):

480~750

Voltage Class (KV):

500~1000

Ordinary Insulator Type (KN):

550

Fixture Center Distance (mm):

540~600

Type:

Aluminum Alloy Insulator Replacement Tool

Highlight:

TYDBK-150 Powerline Tools

Powerline Tools Aluminum Alloy

Aluminum Alloy Insulator Replacement Tool

Product Description

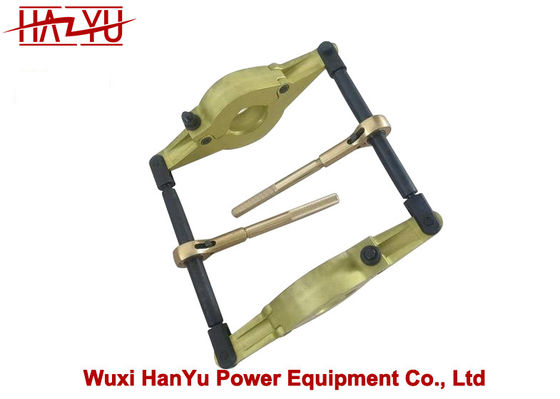

Powerline Tools TYDBK-150 Aluminum Alloy Insulator Replacement Tool

The closed card is designed for 10-1000KV potential or power failure to replace the porcelain bottle. It is mainly used for any piece of porcelain bottle in the tension-resistant porcelain bottle string or straight-line porcelain bottom string. Tighten the broken porcelain bottle string on both sides, loosen the middle one and replace it at the same time, and then release the two tightened porcelain bottles. Either the job can be done or the end clamps can be produced.
Applicable: porcelain bottle insulator; glass insulator
Tools should be used when using: canceller (sold separately)
Front and rear hanging points: steel cap.
Model	Rated load	Ordinary insulator type	Voltage class	Fixture center distance	Screw stroke	Main material
Model	(KN)	(KN)	(KV)	(mm)	(mm)	Main material
TYDBK-30	30	70	10~35	350~380	220	Aluminum alloy
TYDBK-36	36	100	35~110	380~400	220	Aluminum alloy
TYDBK-42	42	160	110~220	400~420	420~620	Aluminum alloy
TYDBK-46	46	210	110~220	420~440	450~720	Aluminum alloy
TYDBK-80	80	300	220~330	420~500	480~720	Aluminum alloy
TYDBK-100	100	400	220~500	480~520	480~720	Aluminum alloy
TYDBK-125	125	420	220~500	480~520	480~720	Aluminum alloy
TYDBK-150	150	550	500~1000	540~600	480~750	Aluminum alloy

TYDBK-150 Powerline Tools Aluminum Alloy Insulator Replacement Tool 0
