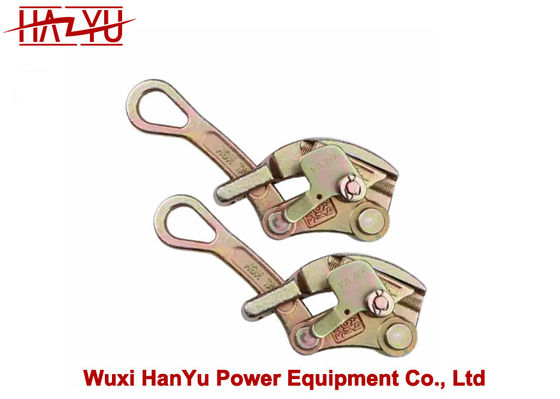

2000kg Cable Grip Rated Load 20kN Metal Cable Puller Power Line Tools

• The cable grips pulling are made of alloy steel, the structure is compact and strong, special heat treatment, durable, stable, and high strength.
• With strong resistance and high bite, not easy to slip and deform. It can adjust the overhead power lines, which can solve the problem of sagging and tightening them.
• The jaw with an anti-chip safety device, ensures the safety and the jumper. With delicate and smooth tongs, minimal damage to the lead.
• For all kinds of steel cables apply to electric power, the operation of industry and agriculture, and the tightening of the rope line.
• Applicable wire diameter 4-22mm, Max Load 2 Ton. If you have any questions about our products, please feel free to contact us.

WLL

2000KG

Rated load

20KN

Use range

4-22mm standard transmission and distribution aluminum wire, steel core wire, insulated wire.

Package

Paper Box

• Cable Grip Puller is a tool that allows a user to latch on to a wire or cable to assist in creating tension on a wire rope.
• Made of alloy steel, strong and durable
• High occlusion, strong clamping performance, can grip wire tightly without damaging it.
• The swing latch is designed to help hold cable in the jaw.

• Our rope puller applies to electric power, the operation of the industry and agriculture, and the tightening of the wire rope line.

• Use of a wire grip cable puller allows for any slack to be removed quickly and easily and creates a more structurally sound build than manually tightening.

• Suitable for gripping steel strand, aluminium cable steel reinforced, steel wire rope, etc.

1. The wire rope grip is made of alloy steel.

2. The structure is compact, which is light, and portable.

3. Resistance is strong, the bite is high, not easy to slip and deform.

4. With delicate and smooth tongs, minimal damage to the lead.

5. The wire puller is machined and heat treated for excellent durability.

6. The clamp mouth is equipped with an anti-chip safety device.

1. 0.5 Ton Applicable cable size: 1-10mm/0.04-0.4inch, maximum safe load: 0.5 Ton / 1102 pounds;

2. 1 Ton Applicable cable size: 2.5-16mm/0.1-0.6inch, maximum safe load: 1 Ton / 2204 pounds;

3. 2 Ton Applicable cable size: 4-22mm/0.15-0.8inch, maximum safe load: 2 Ton / 4409 pounds;

4. 3 Ton Applicable cable size: 16-32mm/0.63-1.26inch, maximum safe load: 3 Ton / 6613 pounds.
