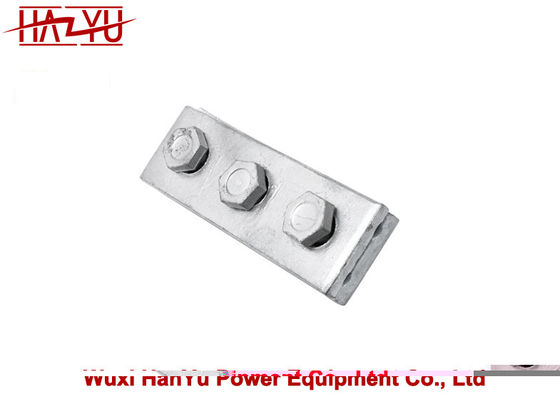

Three Bolt Guy Wire Clamp Powerline Tools 100mm Guy Wire Pole Clamp

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Case
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	6000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

P-*G0103-H1

Standard:

40Pkg.Qty./Carton

Bolt Diameter:

Approximate Ship Weight:

103.50kg./100 Pcs

Length:

100mm

No.of Bolt:

Type:

Bolt Suspension Clamp

Highlight:

Three Bolt Guy Wire Clamp

100mm Guy Wire Pole Clamp

Guy Wire Clamp Powerline Tools

Product Description

Powerline Tools Three Bolt Guy Wire Clamp Bolt Suspension Clamp

Guy Clamp Manufacturing Process: Our Guy Clamp manufacturing process consists of the following stages: Firstly, hot rolling, where the blank gets cut, heated and rolled till it becomes of the needed size and form. And then pressing hole on the carbon steel. The final process is doing hot dip galvanizing.
Material: Constructed of high quality steel, hot-dip galvanized. Guy clamps are rolled from premium quality carbon steel. So far, this is one of the best materials for making guy clamps and other power line fittings. The steel material is strong enough and has a high tensile strength to sustain mechanical forces.
Strength: There are many factors that influence the strength of a loop type dead-end formed by a guy clamp. Such as guy clamp materials, guy strand type, the number of bolts, and clamp bolt torque.
Surface treatment: The strength of the steel guy clamp is boosted through a hot-dip galvanization process. Since this pole line fitting is exposed to various elements of nature such as rain, high temperature, humidity, and chemicals, it needs ultimate protection. The galvanization process creates a coating that shields the steel material from all these elements.

Stock No.	No.of Bolt	Bolt Diameter	Clamp Dimension			Approximate Ship Weight	Standard
			Length	Width	Thickness
		Inch	mm			kg./100 pcs	Pkg.Qty./Carton
Heavy Duty-Drop Forged
P-*G0101-H1	1	1/2	42	44	9.1	30.50	50
P-*G0101-H2	1	5/8	50	44	9.1	35.00	50
P-*G0102-H1	2	1/2	62	44	9.1	60.00	50
P-*G0102-H2	2	5/8	70	44	9.1	64.50	50
P-*G0103-H1	3	1/2	100	44	9.1	103.50	40
P-*G0103-H2	3	5/8	152	44	9.1	122.00	30
Light Duty-Press Forged
P-G0101-L1	1	1/2	42	44	8.3	24.40	50
P-G0101-L2	1	5/8	50	44	8.3	28.50	50
P-G0102-L1	2	1/2	62	44	8.3	48.40	50
P-G0102-L2	2	5/8	70	44	8.3	52.00	50
P-G0103-L1	3	1/2	100	44	8.3	83.00	40
P-G0103-L2	3	5/8	152	44	8.3	97.50	30

Guy clamp is a type of suspension clamp for overhead power line and communication line, it can be used in loop type guy dead-ends. Guy clamp is also called guy wire clamp, parallel groove clamp or straight cable suspension clamp.

According to the number of clamping bolts used on the clamp, there are 1 bolt guy clamps, 2 bolt guy clamps and 3 bolt guy clamps. Guy clamps are designed and manufactured for optimum performance levels.

In terms of the design and the structural appearance, these guy clamps are straight and have parallel grooves. This design ensures that the guy strands are not damaged during the installation process. The design also ensures that the guy clamps have the maximum holding strength.

Guy clamps come in different sizes. The size is determined by the length, width, and diameter of the groove. This means that some guy clamps are longer or wider than others. At the same time, the groove of some guy clamps can support wider strands than others.

The plate halves of the guy clamp are aligned evenly hence easing the installation process. You will not make any mistake when it comes to installing the strands through the guy clamp.

If you would like to get more information about this overhead line fitting, including the guy clamp price, just contact us. We will give you all the technical information that you need to know about the guy clamp.

Three Bolt Guy Wire Clamp Powerline Tools 100mm Guy Wire Pole Clamp 0
