3 Bolt Suspension Clamp Powerline Tools 100mm Length Pole Line Hardware

Powerline Tools P-*G0103-H1 Bolt Suspension Clamp Pole Line Hardware

Product Description

Three Bolt Guy clamp, also called 3 bolt suspension clamp, rolled from carbon steel with straight parallel grooves that will not damage the strand.

3 Bolt Guy Clamp is mainly used on communication line, together with the stay wire and anchor rod to make the pole stable. When the stay wire goes across the anchor rod, the 3 bolt clamp bites the end of the stay wire to prevent the stay wire from creeping down. The grooves of the guy clamp clad the stay wire, and the bolt will fasten two pieces of guy clamp clamping the stay wire.

In another installation way, the 3 bolt guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage.

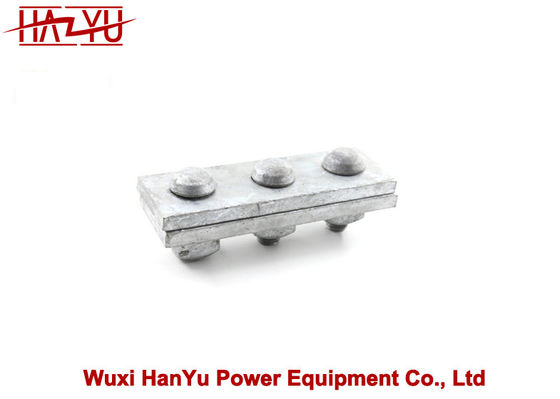

The guy clamp consist of two plates with three bolts equipped with nuts. The clamping bolts have special shoulders to prevent turning when the nuts are tightened.

Material: Constructed of high quality steel, hot-dip galvanized. Guy clamps are rolled from premium quality carbon steel. So far, this is one of the best materials for making guy clamps and other power line fittings. The steel material is strong enough and has a high tensile strength to sustain mechanical forces.

Guy Clamp Manufacturing Process:

Our Guy Clamp manufacturing process consists of the following stages:

Firstly, hot rolling, where the blank gets cut, heated and rolled till it becomes of the needed size and form.

And then pressing hole on the carbon steel.

The final process is doing hot dip galvanizing.

Surface treatment:

The strength of the steel guy clamp is boosted through a hot-dip galvanization process. Since this pole line fitting is exposed to various elements of nature such as rain, high temperature, humidity, and chemicals, it needs ultimate protection. The galvanization process creates a coating that shields the steel material from all these elements.

Strength:

There are many factors that influence the strength of a loop type dead-end formed by a guy clamp. Such as guy clamp materials, guy strand type, the number of bolts, and clamp bolt torque.

In order to achieve sufficient holding strength, the guy clamps and fittings should be used on the proper size strand shown in the following table.
