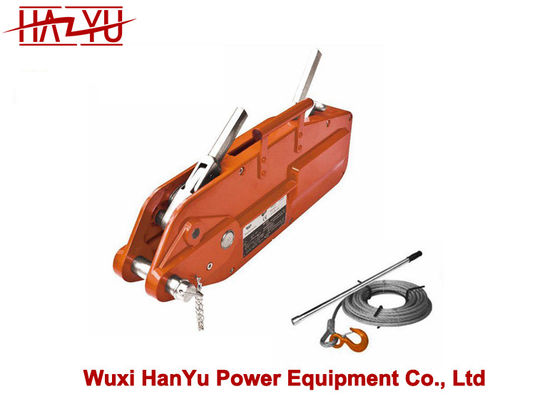

Powerline Tirfor Tyler Tool Aluminum Wire Rope Winch With Cable

Simple structure and powerful function

Fast and easy installation, Simple to feed in or remove the wire rope, Continuous operation without snatching, Changeover from forward to reverse operation by transferring the operating handle from one lever to another, Works in any position horizontal, vertical or angled.

The length of the wire rope is not limited

Standard length of steel wire rope is 20 meters but custom length s available on request.

Safe and reliable

Each Hoist is tested to 1.5 times of the rated capacity. The jaws and connecting axle have been quenched, and the modules have been electroplated. The performance of the products will not be affected after the four-fold strength test.

Increase the nominal capacity with multiple sheave blocks

The rated load of the machine can be increased with the snatch block and the traction direction of the machine can be changed by the fixed snatch block or fixed object.

Safety device to prevent overloading

Each Hoist has a built in shear pin which is designed to break at approximately 25% above the working load limit, this prevents excessive over loading. The pins can be replaced without releasing the load. two spare pin s are located In the carry handle.

Load positioning accurate to mm

Whether lifting or lowering, the load is permanently controlled with the utmost precision; when operation st load is spread between the two jaw blocks.

Construction,public works,civil engineering

moving and positioning form work horizontally or vertically;positioning sections of precast concrete beams;
lifting work platforms or suspended working platforms;dragging, general lifting, guying,tensioning,etc.

Pipelaying and jointing

positioning of pipes for welding and jointing;laying concrete pipes and pulling them together;

Bridges

positioning form work; guying; pulling pre-cast concrete beams;

Industry

installation and removal of machine tools and presses;lifting and pulling during maintenance operations;loading and unloading of heavy equipment;pulling pre-cast concrete beams;

Escalators,elevators

loading,unloading and rigging of prefabricated escalators;lifting and positioning the cabins and drawing mechanisms;

Electricity and telecommunications

positioning transformers; tensioning underground and over head cable;erection of mobile aerials and antennas; guying operations;

Mines and quarries

handling and positioning equipment and underground machinery;tensioning conveyors; and wherever there is a need for lifting, or puling heavy load
