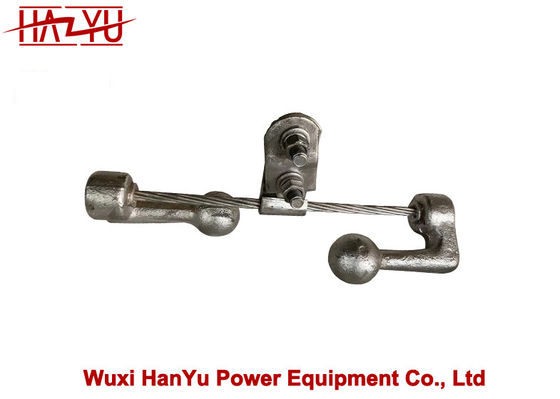

Shock Proof Damper Powerline Tools Anti Vibration Hammer For Conductor
  • name
  • name

Shock Proof Damper Powerline Tools Anti Vibration Hammer For Conductor

MOQ: 30pieces
Price: Negotiable
Standard Packaging: Case
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 6000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
FDZ-1
Type:
Anti-vibration Hammer For Conductor
Applicable Conductor):
7.0-12.0
Specification:
19/1.8
Weight(kg):
0.7
Dimension A:
50mm
Dimension H:
66mm
Highlight:

Shock Proof Damper Powerline Tools

,

Powerline Tools Anti Vibration Hammer

,

Conductor Shock Proof Damper

Product Description

Powerline Tools Shock-proof Damper Anti-vibration Hammer for Conductor



FDZ series combined spacing damper is suitable for all conductor and ground wire structures. Including: ACSR, AAC, AAAC, AACSR (reinforced aluminum alloy conductor steel).



Item No. Applicable Conductor Dimensions(mm) Specification Weight(kg) Specification
a h L1 L
FDZ-1 7.0-12.0 50 66 120 320 19/1.8 0.7 1.8
FDZ-2 11.0-15.0 50 66 130 350 19/1.8 0.9 2.3
FDZ-3 14.0-19.0 60 66 150 430 19/2.2 1.7 4.4
FDZ-4 18.0-22.5 60 66 160 470 19/2.2 2.1 5.5
FDZ-5F 22.0-29.0 60 95 180 520 19/2.6 3 7.1
FDZ-6F 28.0-35.0 60 95 180 520 19/2.6 3.6 8.3
FDZ-1T 7.8 60 30.7 120 320 19/1.8 0.7 1.8
FDZ-2T 9.0-9.6 60 30.7 130 350 19/1.8 0.9 2.3
FDZ-3T 11.0-11.5 60 44.7 150 430 19/2.2 1.7 4.4
FDZ-4T 13 60 44.7 160 470 19/2.2 2.1 5.5



Spacer Damper FDZ Series

A common and undesirable phenomenon in overhead transmission lines is the high frequency and short wave vibration of conductors, shields and overhead communication cables due to natural wind currents. This phenomenon is extremely easy to happen and unavoidable.



Stockbridge Damper Instructions/Descrption

Common anti-vibration methods include installing Stockbridge dampers, damper wires, or a combination of Stockbridge dampers and damper wires. High-frequency vibrations are mainly damped by damping wires, and low-frequency vibrations are mainly damped by anti-vibration dampers. Due to the small span and the low suspension point of the wire, the ordinary span wire generally uses an anti-vibration hammer to prevent vibration. When vibrating, the wire drives the anti-vibration hammer to vibrate together, and the vibration energy of the wire is absorbed by the anti-vibration hammer, thereby protecting the anti-vibration and anti-vibration of the transmission line wire.



Due to the long vibration time under strong wind conditions, it is required to limit the amplitude to a low level, and the amplitude should not exceed 50% of the normal gear. Generally, a combination of damping wire and shock absorber is used. In addition, in some areas where wind vibration conditions are particularly severe, Stockbridge dampers cannot meet the requirements, and damping wires and Stockbridge dampers must be used to suppress wind vibration.



Shock Proof Damper Powerline Tools Anti Vibration Hammer For Conductor 0
