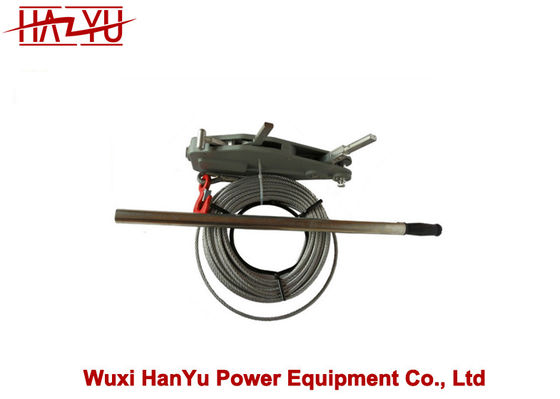

Name: Powerline Tools TYTFX-10 Rope Pulling Hoist Tirfor Hand Winch
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TFX-10
Availability: InStock

MOQ:	10pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	2000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TFX-10

Type:

TYTFX Rope Pulling Hoist

Pulling Capacity:

15kN

Lifting Capacity:

10kN

Rope Length:

20m

Mass:

6kg

Rope Diameter:

8mm

Highlight:

powerline tools tytfx

powerline tirfor hand winch

tytfx tirfor hand winch

Product Description

Powerline Tools TYTFX-10 Rope Pulling Hoist Tirfor Hand Winch

TYTFX Rope Pulling Hoist
This is designed to pull or lift ropes, conductors or loads.
Model	Lifting capacity (kN)	Pulling capacity (kN)	Rope diameter (mm)	Rope length (m)	Mass (kg)
TFX-8	8	12.5	8	20	6
TFX-10	10	15	8	20	6
TFX-16	16	25	11	20	12
TFX-32	32	50	16	10	23
TFX-54	54	80	20	10	45

Here is a selection of the many applications.

Construction,public works,civil engineering

moving and positioning form work horizontally or vertically;positioning sections of precast concrete beams;

lifting work platforms or suspended working platforms;dragging, general lifting, guying,tensioning,etc.

Pipelaying and jointing

positioning of pipes for welding and jointing;laying concrete pipes and pulling them together;

Bridges

positioning form work; guying; pulling pre-cast concrete beams;

Industry

installation and removal of machine tools and presses;lifting and pulling during maintenance operations;loading and unloading of heavy equipment;pulling pre-cast concrete beams;

Escalators,elevators

loading,unloading and rigging of prefabricated escalators;lifting and positioning the cabins and drawing mechanisms;

Electricity and telecommunications

positioning transformers; tensioning underground and over head cable;erection of mobile aerials and antennas;

guying operations;

Mines and quarries

handling and positioning equipment and underground machinery;tensioning conveyors;

and wherever there is a need for lifting, or puling heavy load

Powerline Tools TYTFX-10 Rope Pulling Hoist Tirfor Hand Winch 0
