Powerline Tools TYTFX Rope Pulling Hoist to Pull or Lift Ropes
  • name
  • name

Powerline Tools TYTFX Rope Pulling Hoist to Pull or Lift Ropes

MOQ: 10pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 2000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TFX-8
Type:
TYTFX Rope Pulling Hoist
Lifting Capacity:
8kN
Pulling Capacity:
12.5kN
Rope Diameter:
8mm
Rope Length:
20m
Mass:
6kg
Highlight:

powerline tools tytfx

,

powerline power line tools and equipment

,

tytfx power line tools and equipment

Product Description

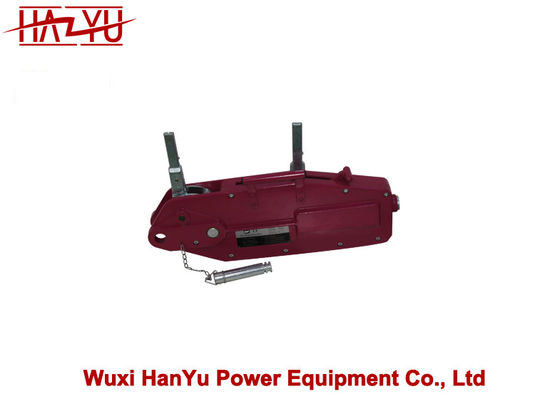

Powerline Tools TYTFX Rope Pulling Hoist to Pull or Lift Ropes



TYTFX Rope Pulling Hoist

This is designed to pull or lift ropes, conductors or loads.
Model Lifting capacity (kN) Pulling capacity (kN) Rope diameter (mm) Rope length (m) Mass (kg)
TFX-8 8 12.5 8 20 6
TFX-10 10 15 8 20 6
TFX-16 16 25 11 20 12
TFX-32 32 50 16 10 23
TFX-54 54 80 20 10 45



ADVANTAGES OF THE WIRE ROPE HOIST

  • Simple structure and powerful function

Fast and easy installation, Simple to feed in or remove the wire rope, Continuous operation without snatching, Changeover from forward to reverse operation by transferring the operating handle from one lever to another, Works in any position horizontal, vertical or angled.



  • The length of the wire rope is not limited

Standard length of steel wire rope is 20 meters but custom length s available on request.



  • Safe and reliable

Each Hoist is tested to 1.5 times of the rated capacity. The jaws and connecting axle have been quenched, and the modules have been electroplated. The performance of the products will not be affected after the four-fold strength test.



  • Increase the nominal capacity with multiple sheave blocks

The rated load of the machine can be increased with the snatch block and the traction direction of the machine can be changed by the fixed snatch block or fixed object.



  • Safety device to prevent overloading

Each Hoist has a built in shear pin which is designed to break at approximately 25% above the working load limit, this prevents excessive over loading. The pins can be replaced without releasing the load. two spare pin s are located In the carry handle.



  • Load positioning accurate to mm

Whether lifting or lowering, the load is permanently controlled with the utmost precision; when operation st load is spread between the two jaw blocks.



Powerline Tools TYTFX Rope Pulling Hoist to Pull or Lift Ropes 0
