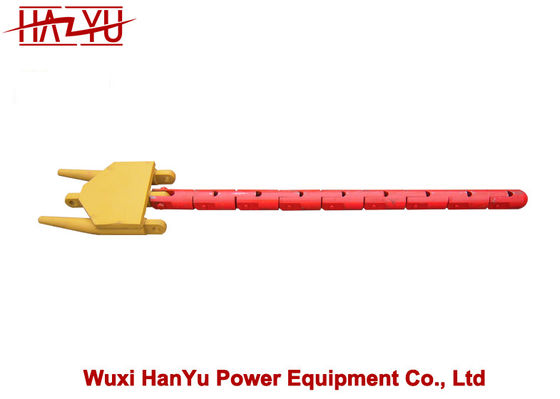

Powerline Tools TYSZ Head Boards One Rope Pulling Two Conductors
  • name
  • name

Powerline Tools TYSZ Head Boards One Rope Pulling Two Conductors

MOQ: 10pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 1000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TYSZ2-6-75
Type:
TYSZ2-6-75 Head Boards
Description:
One Rope Pulling Two Conductors
Rated Load:
60kN
Weight:
12.5kg
Pulley Wheel Width:
75mm
Remark:
Conductor Separated
Highlight:

powerline power line tools and equipment

Product Description

Powerline Tools TYSZ Head Boards One Rope Pulling Two Conductors



TYSZ Head Boards

The head board is designed to connect the pulling rope (max 28mm) with 2 to 5 bundled conductors. Special models with different characteristics can be designed according to customer's needs.
Model Description Rated load (kN) Weight (kg) Pulley wheel width (mm) Remark
SZ2-6-75 One rope pulling two conductors 60 12.5 75 Conductor separated
SZ2-8-100 One rope pulling two conductors 80 17 100
SZ2-13-110 One rope pulling two conductors 130 110 110
SZ2-18-125 One rope pulling two conductors 180 125 125
SZ3-8-75 One rope pulling three conductors 80 19 75
SZ3-10-100 One rope pulling three conductors 100   100
SZ3-13-100 One rope pulling three conductors 130   100
SZ3-18-110 One rope pulling three conductors 180   110
SZ4-13-100 One rope pulling four conductors 130 96 100
SZ4-18-100 One rope pulling four conductors 180 90 100
SZ4-18-110 One rope pulling four conductors 180 90 110
SZ4-25-110 One rope pulling four conductors 250 105 110
SZ4-32-125 One rope pulling four conductors 320 150 125
SZ6-25-100 One rope pulling six conductors 250 140 100
SZ2A-8-75 One rope pulling two conductors 80 100 75 Balance Pulley
SZ2A-8-100 One rope pulling two conductors 80 100 100
SZ2A-8-110 One rope pulling two conductors 80 100 110
SZ3A-8-75 One rope pulling three conductors 80 100 75
SZ3A-10-100 One rope pulling three conductors 100 114 100
SZ3A-13-110 One rope pulling three conductors 130 130 110
SZ3A-18-110 One rope pulling three conductors 180 140 110
SZ3A-18-125 One rope pulling three conductors 180 155 125
SZ4A-13-100 One rope pulling four conductors 130 127 100
SZ4A-13-110 One rope pulling three conductors 130 140 110
SZ4A-18-110 One rope pulling four conductors 180 155 110
SZ4A-18-125 One rope pulling three conductors 180 160 125



Powerline Tools TYSZ Head Boards One Rope Pulling Two Conductors 0
