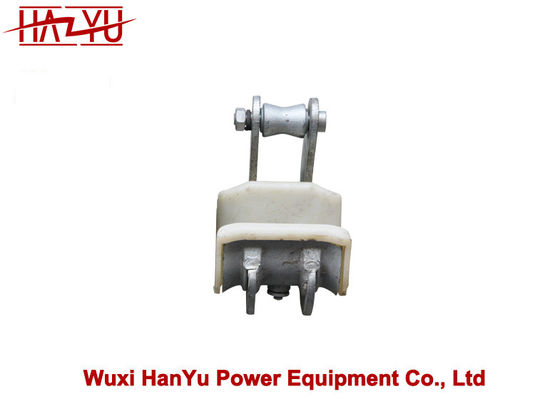

Name: TYST12 12kN Conductor Lifter For Transmission Line Construction
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: ST12
Availability: InStock

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	5000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

ST12

Type:

TYST Conductor Lifter

Rated Load:

12kN

Tray Length:

120mm

Weight:

2.5kg

Highlight:

TYST12 12kN Conductor Lifter

Transmission Line Conductor Lifter

12kN Conductor Lifter

Product Description

TYST12 12kN Conductor Lifter For Transmission Line Construction

TYST Conductor Lifter

Model	Rated load (kN)	Tray length (mm)	Weight (kg)
ST8	8	60	0.9
ST12	12	120	2.5
ST25	25	160	7
ST40	40	250	10.5

Model	Rated load (KN)	Hook groove length (mm)	Weight (kg)	Remark
ST25-2	2X12	120	13	Two bundled Conductors
ST50-2	2X25	160	25	Two bundled Conductors
ST80-2	2X40	250	40	Two bundled Conductors
ST36-3	3X12	120	21	Three bundled Conductors
ST75-3	3X25	160	35	Three bundled Conductors
ST120-3	3X40	250	60	Three bundled Conductors
ST48-4	4X12	120	35	Four bundled Conductors
ST100-4	4X25	160	60	Four bundled Conductors
ST160-4	4X40	250	90	Four bundled Conductors
ST150-6	6X25	160	70	Six bundled Conductors
ST240-6	6X40	250	110	Six bundled Conductors
ST200-8	8X25	160	120	Eight bundled Conductors
ST320-8	8X40	250	160	Eight bundled Conductors

TYST12 12kN Conductor Lifter For Transmission Line Construction 0
