Name: TYSLX Powerline Tools Highly Tensile Galvanized Steel Swivel Joints
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: SLX-1
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	5000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

SLX-1

Type:

TYSLX Swivel Joints

Dimensions A:

30mm

Dimensions B:

100mm

Dimensions C:

70mm

Dimensions D:

12mm

Dimensions E:

13mm

Rated Load:

10kN

Weight:

0.4kg

Highlight:

powerline power line tools and equipment

10kn powerline tools

10kn power line tools and equipment

Product Description

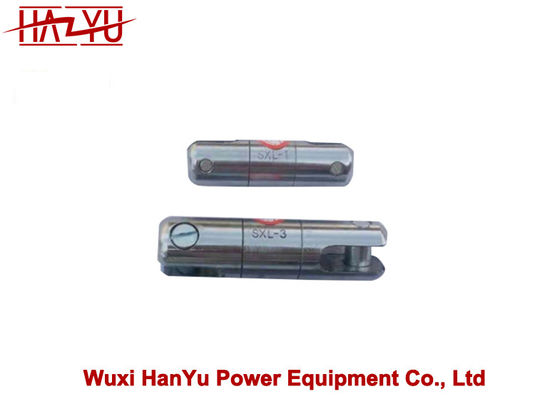

TYSLX Powerline Tools Highly Tensile Galvanized Steel Swivel Joints

TYSLX Swivel Joints The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys.
Model	Dimensions (mm)					Rated load	Weight
Model	A	B	C	D	E	(kN)	(kg)
SLX-1	30	100	70	12	13	10	0.4
SLX-2	35	120	90	14	14	20	0.55
SLX-3	37	129	95	16	16	30	0.65
SLX-5	42	154	116	18	17	50	1.5
SLX-8	57	220	165	24	22	80	2.4
SLX-13	62	248	192	26	24	130	3.5
SLX-18	75	294	222	26	26	180	7.2
SLX-25	85	331	251	30	30	250	10.6
SLX-32	85	346	264	38	30	320	9.7

TYSLX Powerline Tools Highly Tensile Galvanized Steel Swivel Joints 0
