Name: Powerline Tools SLU-5 Rated Load 50kN Galvanized Steel Connectors
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: SLU-5
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	20000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

SLU-5

Rated Load:

50kN

Type:

Highly Tensile Galvanized Steel Connectors

Dimensions A:

50mm

Dimensions B:

96mm

Dimensions C:

23mm

Dimensions D:

19mm

Dimensions E:

42mm

Dimensions D:

18mm

Highlight:

powerline power line tools and equipment

Product Description

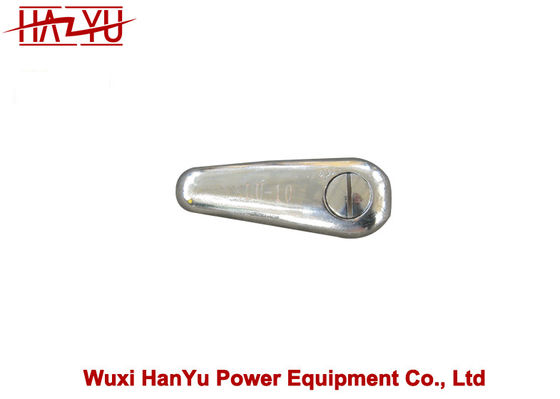

Powerline Tools SLU-5 Rated Load 50kN Galvanized Steel Connectors

TYSLU Connectors
The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels.
They are made of highly tensile galvanized steel.
Model	Dimensions						Weight	Rated load
	A	B	C	d	D	E	Weight	Rated load
	mm						kg	kN
SLU-1	36	68	18	10	14	29	0.2	10
SLU-3	37	76	20	12	17	31	0.22	30
SLU-5	50	96	23	18	19	42	0.6	50
SLU-8	56	110	28	20	22	50	0.8	80
SLU-10	59	126	30	22	26	54	1.2	100
SLU-13	61	134	32	24	27	56	1.3	130
SLU-15	63	138	37	27	28	58	1.4	150
SLU-25	80	178	44	32	35	72	3.0	250
SLU-28	80	178	44	32	35	72	3.0	280
SLU-32	85	186	42	30	38	80	3.9	320

Powerline Tools SLU-5 Rated Load 50kN Galvanized Steel Connectors 0
