Powerline Tools TYSLU-3 30kN Connectors Connect Pilot Rope Lengths
  • name
  • name

Powerline Tools TYSLU-3 30kN Connectors Connect Pilot Rope Lengths

MOQ: 50pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 20000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
SLU-3
Rated Load:
30kN
Dimensions A:
37mm
Dimensions B:
76mm
Dimensions C:
20mm
Dimensions D:
12mm
Dimensions D:
17mm
Dimensions E:
31mm
Type:
Galvanized Steel Connectors
Highlight:

powerline power line tools and equipment

Product Description

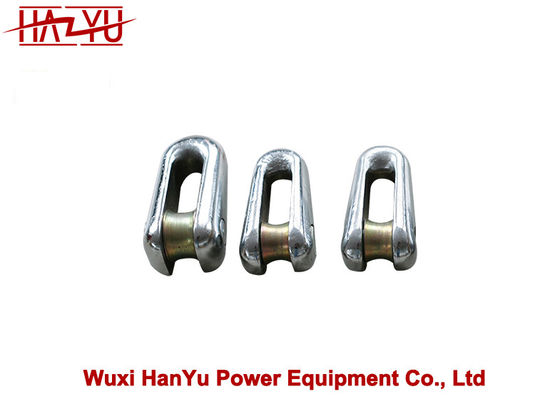

Powerline Tools TYSLU-3 30kN Connectors Connect Pilot Rope Lengths



TYSLU Connectors
  • The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels.
  • They are made of highly tensile galvanized steel.
Model Dimensions Rated load Weight
A B C d D E
mm kN kg
SLU-1 36 68 18 10 14 29 10 0.2
SLU-3 37 76 20 12 17 31 30 0.22
SLU-5 50 96 23 18 19 42 50 0.6
SLU-8 56 110 28 20 22 50 80 0.8
SLU-10 59 126 30 22 26 54 100 1.2
SLU-13 61 134 32 24 27 56 130 1.3
SLU-15 63 138 37 27 28 58 150 1.4
SLU-25 80 178 44 32 35 72 250 3.0
SLU-28 80 178 44 32 35 72 280 3.0
SLU-32 85 186 42 30 38 80 320 3.9


Powerline Tools TYSLU-3 30kN Connectors Connect Pilot Rope Lengths 0
