Name: Powerline Tools TYSKL-7 High Strength Aluminum Self Gripping Clamps
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: SKL-7
Availability: InStock

MOQ:	50pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

SKL-7

Type:

TYSK Self Gripping Clamps

Conductor Size:

25~70mm2

Rated Load:

7kN

Max. Opening:

14mm

Weight:

1.0kg

Material:

High Strength Hot Forged Steel Or Aluminum

Highlight:

powerline power line tools and equipment

aluminum powerline tools

aluminum power line tools and equipment

Product Description

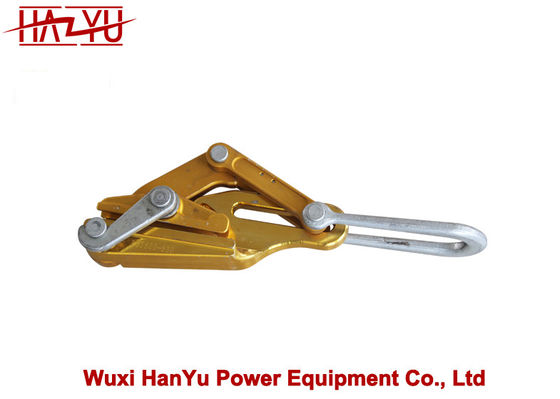

Powerline Tools TYSKL-7 High Strength Aluminum Self Gripping Clamps

TYSK Self Gripping Clamps The self-gripping clamps can be use to anchor and to string conductor. The body is made of high strength hot forged steel or Aluminum, in order to minimize the ratio between weight and working load.
G is usd to say that it is equipped with protection hook device, its test intensity up to 3 times, and not hurt conductor.
Model	Conductor size (mm2)	Rated load (kN)	Max. opening (mm)	Weight (kg)
SKL-7	25~70	7	14	1.0
SKL-15	95~120	15	18	1.4
SKL-25	150~240	25	24	3.0
SKL-40	300~400	40	32	4.0
SKL-50	500~630	50	36	6.6
SKL-50B	630	50	36	6.6
SKL-40G	400	40	32	4.3
SKL-50GA	500	50	34	7.0
SKL-50GB	630	50	36	7.3
SKL-60G	720	60	38	9.2
SKL-70	900	70	42	14
SKL-70G	900	70	42	14
SKL-80G	1000	80	45	18
SKL-80GA	1200	80	48	18

Powerline Tools TYSKL-7 High Strength Aluminum Self Gripping Clamps 0
