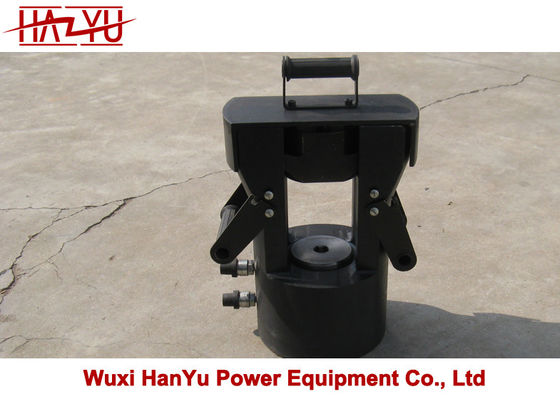

QY-125 Powerline Tools Hydraulic Compressors 94kN Rated Pressure
  • name
  • name

QY-125 Powerline Tools Hydraulic Compressors 94kN Rated Pressure

MOQ: 10pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 1000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
QY-125
Max Compression Force:
1250kN
Max Stroke:
25mm
Conductor Size:
≤720mm
Weight:
40kg
Rated Pressure:
94kN
Type:
TYQY Hydraulic Compressors
Highlight:

powerline power line tools and equipment

Product Description

QY-125 Powerline Tools Hydraulic Compressors 94kN Rated Pressure



TYQY Hydraulic Compressors

The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics:

  1. excellent weight/power ratio;
  2. very short pressing cycle (all the presses have an hydraulically-driven piston release);
  3. each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press

For compressor
  • QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.
Model Max compression force (kN) Rated pressure (kN) Conductor size (mm) Max stroke (mm) Weight (kg)
QY-65 650 94 ≤500 25 25
QY-125 1250 94 ≤720 25 40
QY-200 2000 94 ≤1440 25 85

For Die
Model Compressor model Aluminum Dies Steel Dies Copper Dies
QYD-65 QY-65

26/28/30/32/34/36/
38/40/45/50

12/14/16/18/20/
22/24/26

 16~800mm2
QYD-125 QY-125

26/28/30/32/34/36/
38/40/45/50/52/55/60

12/14/16/18/20/
22/24/26

 16~800mm2
QYD-200 QY-200

26/28/30/32/34/36/
38/40/45/50/52/55/
60/65/70/75/80

12/14/16/18/20/
22/24/26/28/30/32

 16~800mm2

For Gasoline pump
Model Max compression force Engine Flow Tank capacity Power Weight
YB-100 100Mpa Gasoline 1.6L/min 8L 5.5hp 83kg
YB-100D 100Mpa Diesel 1.6L/min 8L 4hp 100kg
YB-100M 100Mpa Motor 1.6L/min 8L 1.5hp 90kg


QY-125 Powerline Tools Hydraulic Compressors 94kN Rated Pressure 0
