Powerline Tools TYJ240 Cover Joints Conductor Stringing Operations
  • name
  • name

Powerline Tools TYJ240 Cover Joints Conductor Stringing Operations

MOQ: 30pieces
Price: Negotiable
Standard Packaging: Case
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
J240
Conductor:
240mm2
Dimensions D:
45mm
Dimensions L:
850mm
Dimensions D:
38mm
Dimensions L1:
530mm
Type:
TYJ Cover Joints
Highlight:

powerline power line tools and equipment

Product Description

Powerline Tools TYJ240 Cover Joints Conductor Stringing Operations



TYJ Cover Joints

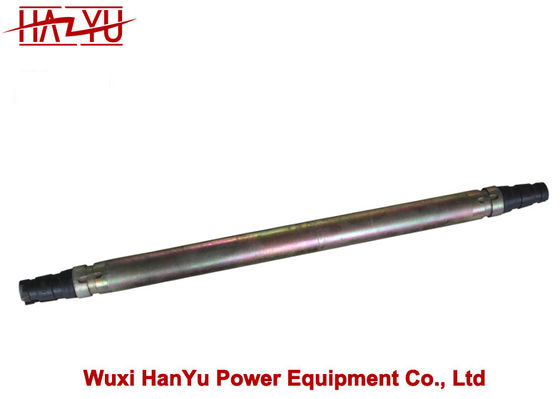

The cover joints are specifically designed to protect the mid span joint, made at the "tensioner station", during conductor stringing operations. The cover joints consist of two shells made of galvanized steel with shaped ends to house the rubber noses which protect the mid span joint during the passage over the pulleys. The shells are coupled together by socket screws and the rubber noses are clipped together by belts.
Model Dimensions (mm) Conductor
D L d L1 (mm2)
J240 45 850 38 530 240
J300 51 940 43 600 300
J400 57 985 47 655 400
J500 68 1080 56 740 500
J630 83 1180 63 800 630
J720 83 1196 63 816 720
J900 89 1180 73 800 900
J1000 95 1400 75 1020 1000



Powerline Tools TYJ240 Cover Joints Conductor Stringing Operations 0
