Name: Powerline Tools High Strength Shackle For Transmission Line Construction
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: GXK-5
Availability: InStock

MOQ:	30pieces
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10000pieces/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

GXK-5

Weight:

1.12kg

Rated Load:

50kN

Dimensions B:

89mm

Dimensions C:

22mm

Dimensions A:

107mm

Type:

High Strength Shackle

Highlight:

powerline power line tools and equipment

Product Description

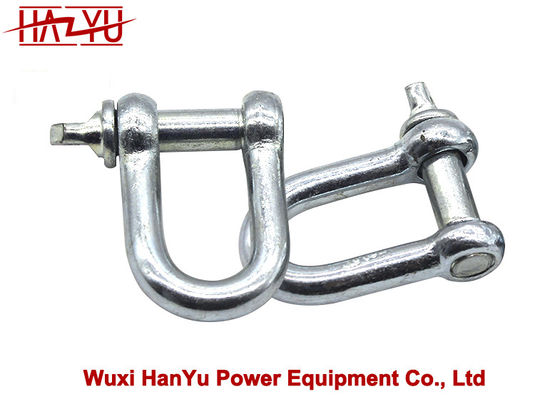

Powerline Tools High Strength Shackle For Transmission Line Construction

TYGXK High strength Shackle

Model	Rated load	Weight	Dimensions
	Rated load	Weight	A	B	C	D
	(kN)	(kg)	(mm)
GXK-1	10	0.15	55	42	12	20
GXK-2	20	0.29	67	58	16	24
GXK-3	30	0.8	97	82	20	34
GXK-3A	30	0.9	97	112	20	34
GXK-5	50	1.12	107	89	22	38
GXK-5A	50	1.29	107	131	22	38
GXK-8	80	2.4	128	97	30	45
GXK-10	100	3.56	141	114	34	48
GXK-16	160	4.8	152.5	139	37	54
GXK-20	200	5.17	164	140	39	60
GXK-30	300	7.5	186	146	50	69

Powerline Tools High Strength Shackle For Transmission Line Construction 0
