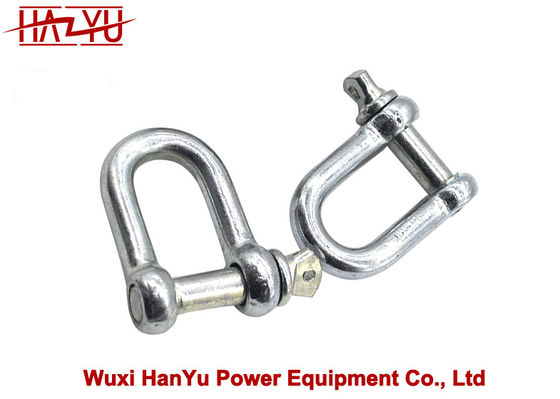

TYGXK-2 Powerline Tools Rated Load 20kN High Strength Shackle
  • name
  • name

TYGXK-2 Powerline Tools Rated Load 20kN High Strength Shackle

MOQ: 30pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
GXK-2
Dimensions A:
67mm
Dimensions B:
58mm
Dimensions C:
16mm
Type:
TYGXK-2 High Strength Shackle
Rated Load:
20kN
Weight:
0.29kg
Highlight:

powerline power line tools and equipment

,

20kn powerline tools

,

20kn power line tools and equipment

Product Description

TYGXK-2 Powerline Tools Rated Load 20kN High Strength Shackle



TYGXK High strength Shackle
Model Dimensions (mm) Rated load Weight
A B C D (kN) (kg)
GXK-1 55 42 12 20 10 0.15
GXK-2 67 58 16 24 20 0.29
GXK-3 97 82 20 34 30 0.8
GXK-3A 97 112 20 34 30 0.9
GXK-5 107 89 22 38 50 1.12
GXK-5A 107 131 22 38 50 1.29
GXK-8 128 97 30 45 80 2.4
GXK-10 141 114 34 48 100 3.56
GXK-16 152.5 139 37 54 160 4.8
GXK-20 164 140 39 60 200 5.17
GXK-30 186 146 50 69 300 7.5



TYGXK-2 Powerline Tools Rated Load 20kN High Strength Shackle 0



Hanyu always takes the market as the guide, makes continuous efforts and improvements, and provides customers with excellent quality products and satisfactory and thoughtful services. We operate in strict accordance with the management mode of a modern enterprise, with high quality, strong technology, and excellent service as the development direction, and gather the entire technical team to create value for the enterprise and customers. With the enterprise spirit of "pursuing excellence", we will continue to innovate and manufacture high-quality products. Steadily improve product quality, so that users can be more satisfied.
