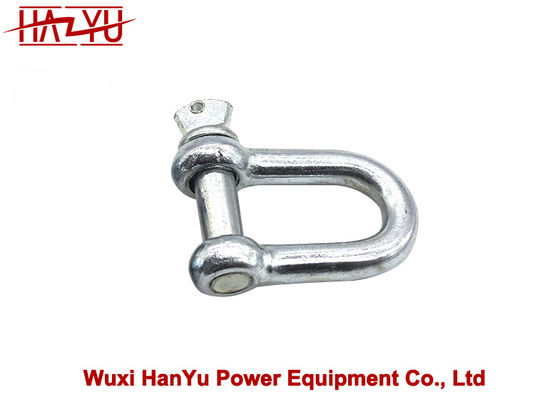

Powerline Tools TYGXK-1 High Strength Shackle Rated Load 10kN
  • name
  • name

Powerline Tools TYGXK-1 High Strength Shackle Rated Load 10kN

MOQ: 30pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 10000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
GXK-1
Type:
TYGXK High Strength Shackle
Rated Load:
10kN
Weight:
0.15kg
Dimensions A:
55mm
Dimensions B:
42mm
Dimensions C:
12mm
Highlight:

powerline power line tools and equipment

,

10kn powerline tools

,

10kn power line tools and equipment

Product Description

Powerline Tools TYGXK-1 High Strength Shackle Rated Load 10kN



TYGXK High strength Shackle
Model Dimensions (mm) Rated load Weight
A B C D (kN) (kg)
GXK-1 55 42 12 20 10 0.15
GXK-2 67 58 16 24 20 0.29
GXK-3 97 82 20 34 30 0.8
GXK-3A 97 112 20 34 30 0.9
GXK-5 107 89 22 38 50 1.12
GXK-5A 107 131 22 38 50 1.29
GXK-8 128 97 30 45 80 2.4
GXK-10 141 114 34 48 100 3.56
GXK-16 152.5 139 37 54 160 4.8
GXK-20 164 140 39 60 200 5.17
GXK-30 186 146 50 69 300 7.5



Powerline Tools TYGXK-1 High Strength Shackle Rated Load 10kN 0



Since its establishment, Wuxi Hanyu Power Equipment Co., Ltd. has been manufacturing and producing with a complete and scientific quality management system. We have complete production equipment and precise testing instruments. Hanyu is committed to using strict management, excellent quality and good service as the basis of market competition, continuously recruiting and training high-level professional technicians and management personnel, and has cultivated batch after batch of outstanding talents in the industry. Hanyu regards "quality as gold, reputation first" as its corporate purpose, takes customers as the focus, produces with quality and quantity, and serves customers with heart.
