Powerline Tools Welded Steel With Protective Coating TYBOF-1100 Reels
  • name
  • name

Powerline Tools Welded Steel With Protective Coating TYBOF-1100 Reels

MOQ: 50pieces
Price: Negotiable
Standard Packaging: Container
Delivery Period: 15-35days
Payment Method: L/C, T/T
Supply Capacity: 5000pieces/month.
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001
Model Number
TYBOF-1100
Type:
Powerline Tools Reels
Width For Rope:
450mm
Dimensions(A):
420mm
Dimensions(D):
1100mm
Dimensions(B):
530mm
Dimensions(C):
560mm
Highlight:

powerline power line tools and equipment

Product Description

Powerline Tools Welded Steel With Protective Coating TYBOF-1100 Reels

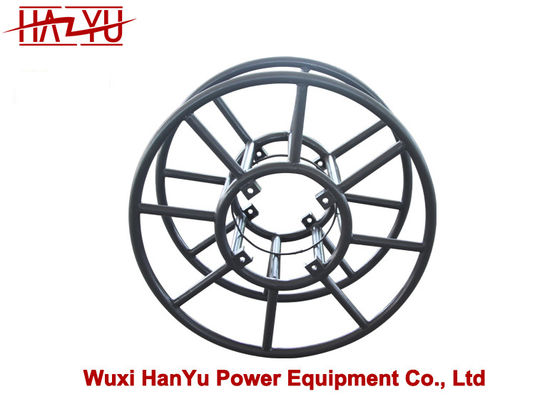

TYBOF Reels

The reels are made of welded steel with protective coating. Each reel is provided with two cross supports and connecting bolts in separate package (need to order).



Model Dimensions (mm) Width for rope Weight
A B C D (mm) (kg)
TYBOF-850 420 530 560 850 450 32
TYBOF-1100 420 530 560 1100 450 52
TYBOF-1250 420 530 560 1250 450 60
TYBOF-1400 420 530 560 1400 450 74
TYBOF-1440 420 530 560 1440 450 78
TYBOF-1600 420 530 560 1600 450 116

Additional Devices

SB-C support: 2 cross supports and connecting bolts (need to order)



Powerline Tools Welded Steel With Protective Coating TYBOF-1100 Reels 0
