Name: 67kN Anti Twisting Steel Braided Rope 1000m Anti Twist Wire Rope
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: YL10-12x19W
Availability: InStock

MOQ:	1000m
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	50000m/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

YL10-12x19W

Type:

Anti-twisting Steel Braided Rope

Normal Diameter:

10mm

Breakage Tension:

67kn

Standard Length:

1000m

Diameter Of Spool:

1000mm

Total Weight:

390kgs

Highlight:

67kN Anti Twisting Steel Braided Rope

1000m Anti Twist Wire Rope

Anti Twisting Steel Braided Rope 1000m

Product Description

YL10-12x19W Anti-Twisting Steel Braided Rope Breakage Tension 67kN

Item no.	Normal Diameter (mm)	Structure	Breakage tension(kN)	Standard Length (m)	Diameter of spool (mm)	Total weight (kgs)	Empty spool weight (kgs)
YL9-12x19W	9	12 Strands	55	1000	850	294	32
YL10-12x19W	10		67		1000	390	47
YL11-12x19W	11		80			454	47
YL12-12x19W	12		100		1100	552	52
YL13-12x19W	13		120			642	52
YL16-12x19W	16		158		1250	886	60
YL18-12x19W	18		210		1400	1154	74
YL20-12x29Fi	20		250			1394	74
YL22-12X29Fi	22		320			1258	74
YL24-12x29Fi	24		360	800	1440	1474	78
YL26-12x29Fi	26		420	700		1723	78
YL28-12x29Fi	28		480	500	1600	1401	116
YL30-12x29Fi	30		540			1666	116
YL20-18x19W	20	18 Strands	300	1000	1440	1368	78
YL22-18X29Fi	22		389	800			78
YL24-18x29Fi	24		440				78
YL28-18x29Fi	28		580	500	1600	1655	116
YL30-18x29Fi	30		658			1900	116

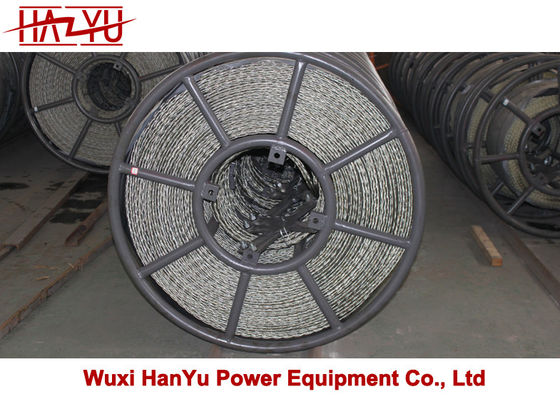

TYFUX YL10-12x19W High Strength Anti Twist Braided Wire Rope

Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line.
It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on.
Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
