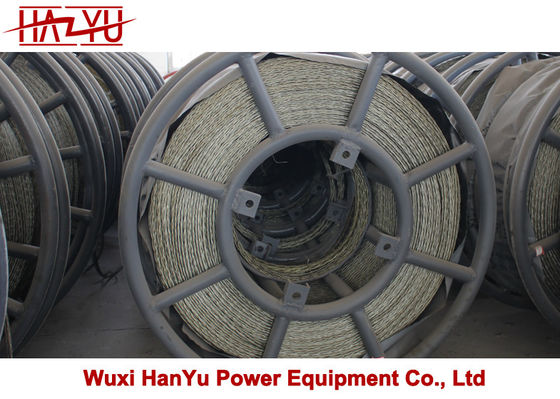

Hot Dip Galvanized Anti Twisting Steel Wire Rope 55kn Anti Twist Wire Rope

MOQ:	1000m
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	50000m/month.

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

YL9-12x19W

Type:

Anti-twisting Steel Braided Rope

Normal Diameter:

Structure:

12 Strands

Breakage Tension:

Standard Length:

1000m

Diameter Of Spool:

850mm

Highlight:

Galvanized Anti Twisting Steel Wire Rope

55kn Anti Twist Wire Rope

Anti Twisting Steel Wire Rope 55kn

Product Description

Anti Twist Steel Rope With High Strength Hot Dip Galvanized Steel

TYFUX ANTI-TWISTING STEEL BRAIDED ROPE

Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.

Item no.	Normal Diameter (mm)	Structure	Breakage tension(kN)	Standard Length (m)	Diameter of spool (mm)	Total weight (kgs)	Empty spool weight (kgs)
YL9-12x19W	9	12 Strands	55	1000	850	294	32
YL10-12x19W	10	12 Strands	67	1000	1000	390	47
YL11-12x19W	11	12 Strands	80	1000	1000	454	47
YL12-12x19W	12	12 Strands	100	1000	1100	552	52
YL13-12x19W	13	12 Strands	120	1000	1100	642	52
YL16-12x19W	16	12 Strands	158	1000	1250	886	60
YL18-12x19W	18	12 Strands	210	1000	1400	1154	74
YL20-12x29Fi	20	12 Strands	250	1000	1400	1394	74
YL22-12X29Fi	22	12 Strands	320	1000	1400	1258	74
YL24-12x29Fi	24	12 Strands	360	800	1440	1474	78
YL26-12x29Fi	26	12 Strands	420	700	1440	1723	78
YL28-12x29Fi	28	12 Strands	480	500	1600	1401	116
YL30-12x29Fi	30	12 Strands	540	500	1600	1666	116
YL20-18x19W	20	18 Strands	300	1000	1440	1368	78
YL22-18X29Fi	22	18 Strands	389	800	1440		78
YL24-18x29Fi	24	18 Strands	440	800	1440		78
YL28-18x29Fi	28	18 Strands	580	500	1600	1655	116
YL30-18x29Fi	30	18 Strands	658	500	1600	1900	116

Hot Dip Galvanized Anti Twisting Steel Wire Rope 55kn Anti Twist Wire Rope 0
