Transmission Line Stringing Tools Hydraulic Cable Tensioner With Changchai Engine
  • name
  • name

Transmission Line Stringing Tools Hydraulic Cable Tensioner With Changchai Engine

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Container
Delivery Period: 20-45Days
Payment Method: L/C,T/T
Supply Capacity: 10 Sets/Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HANYU
Certification
ISO9001, CE
Model Number
TY1x30D-1800
Type:
Hydraulic Tensioner With Diesel Engine
Max Continuous Tension:
30kN
Bull-wheel Diameter:
1800mm
Max Conductor Diameter:
40mm
Max Reverse Pulling Force:
20kN
Single Cylinder Diesel Engine:
18kw(25hp)
Electrical System:
12V
Main Motor:
French Leduc
Highlight:

transmission line stringing tools hydraulic

,

hydraulic transmission line stringing equipment

,

20kn transmission line stringing tools

Product Description

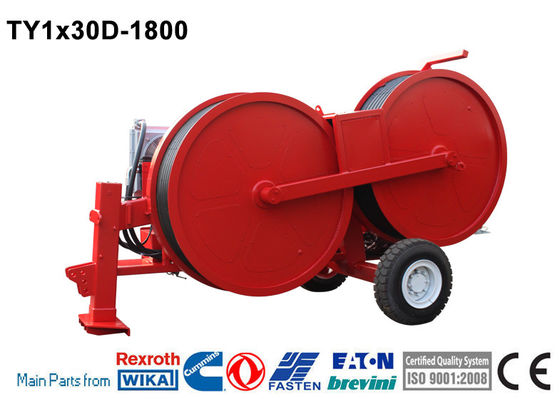

Transmission Line Stringing Tools Hydraulic Cable Tensioner With Changchai Engine



TY1x30D-1800 Hydraulic Tensioner with diesel engine

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.

The hydraulic power unit provides the traction of conductors at both positive and negative directions.

The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

Performance

  • Max continuous tension: 30kN
  • Speed at max tension: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 15kN
  • Max reverse pulling force: 20kN

Engine

  • Single cylinder diesel engine 18kw(25hp)
  • Electrical system 12V

Main configuration

  • Engine: Changchai China
  • Hydraulic pump: German Concentric
  • Main motor: French Leduc
  • speed reducer: German Rexroth / Italy Bonfiglioli
  • Hydraulic valve: German Rexroth
  • Hydraulic meter: German WIKA

Characteristics

  • Bull-wheel diameter: 1800mm
  • Max conductor diameter: 40mm
  • Groove number: 5
  • Total weight: 4600kg
  • Overall dimension (length*width*height): 5000*2000*2600mm

Additional Devices

  • Air brake system for the trailer (extra charge)
  • Hydraulic conductor clamps for drum change operations (extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 15 km/h

Hydraulic Transmission

  • The machine can realize step less speed
  • The machine is provided with tension presetting system

Configuration

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Grounding connection point



Transmission Line Stringing Tools Hydraulic Cable Tensioner With Changchai Engine 0
