Name: TY2x35 2x35kN Hydraulic Cable Tensioner Transmission Line Stringing Equipment
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2x35
Availability: InStock

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	15-35days
Payment Method:	L/C, T/T
Supply Capacity:	10 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001

Model Number

TY2x35

Type:

Hydraulic Cable Tensioner

Overall Dimension (length*width*height):

4300×2250×2700mm

Groove Number:

2x5

Max Reverse Pulling Force:

2x30kN

Diesel:

77kw(103hp)

Electrical System:

24V

Highlight:

ty2x35 transmission line stringing tools

ty2x35 transmission line stringing equipment

2x35kn transmission line stringing tools

Product Description

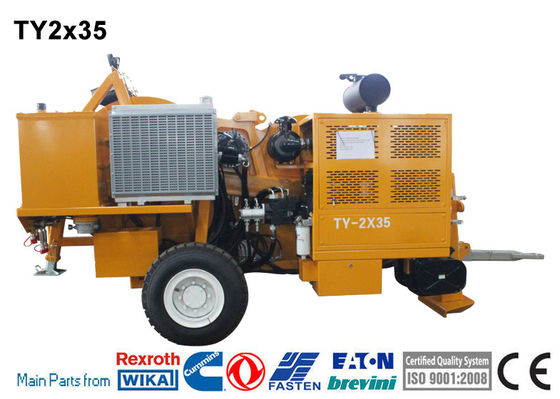

TY2x35 Max Continuous Tension 2x35kN Hydraulic Cable Tensioner

TY2x35 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics	Total weight	4500kg
	Max conductor diameter	40mm
	Groove number	2x5
	Bull-wheel diameter	1300mm
	Overall dimension (lengthwidthheight)	4300×2250×2700mm

Performance	Max intermittent tension	2x40kN
	Max continuous tension	2x35kN
	Max speed	5km/h
	Speed at max tension	2.5km/h
	Max reverse pulling force	2x30kN
	Pull at max speed	2x20kN
	Max reverse pulling speed	5km/h

Main configuration	Engine	Cummins
	Speed reducer	German Rexroth / Italy Bonfiglioli
	Hydraulic pump	German Rexroth/Dnish Danfoss
	Main motor	German Rexroth/French Leduc
	Main hydraulic valves	USA Sun / Italy ATOS

Engine	Diesel	77kw(103hp)
	Cooling system	water
	Electrical system	24V

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Configuration	Hydraulic dynamometers
	Grounding connection point
	Hydraulic oil cooling system
	Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
	Digital speed and meter counter

Additional Devices	Swivel guide rope roller
	2 hydraulic conductor clamps for drum change operations (extra charge)
	Air brake system for the trailer (extra charge)
	Lighting system for the trailer

TY2x35 2x35kN Hydraulic Cable Tensioner Transmission Line Stringing Equipment 0
