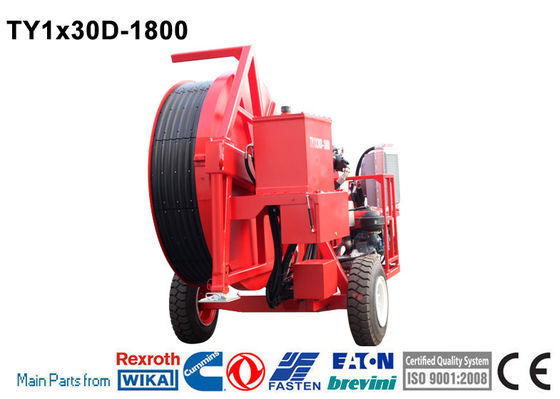

Name: Overhead Line Stringing Equipment 30KN Hydraulic Wire Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY1x30D-1800
Availability: InStock

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	Container
Delivery Period:	20-45Days
Payment Method:	L/C,T/T
Supply Capacity:	10 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HANYU

Certification

ISO9001, CE

Model Number

TY1x30D-1800

Type:

Stringing Equipment TY1x30D-1800 Hydraulic Tensioner

Max Continuous Tension:

30kN

Overall Dimension (length*width*height):

5000*2000*2600mm

Max Conductor Diameter:

40mm

Max Reverse Pulling Force:

20kN

Bull-wheel Diameter:

1800mm

Max Speed:

5km/h

Engine:

Changchai China

Highlight:

Overhead Line Stringing wire Tensioner

30KN Hydraulic wire Tensioner

Product Description

Transmission Line Stringing Tools Stringing Equipment 30KN Hydraulic Tensioner

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.
Performance	Max continuous tension: 30kN Speed at max tension: 2.5km/h Max speed: 5km/h Pull at max speed: 15kN Max reverse pulling force: 20kN
Characteristics	Bull-wheel diameter: 1800mm Max conductor diameter: 40mm Groove number: 5 Total weight: 4600kg Overall dimension (lengthwidthheight): 500020002600mm
Main configuration	Engine: Changchai China Hydraulic pump: German Concentric Main motor: French Leduc speed reducer: German Rexroth / Italy Bonfiglioli Hydraulic valve: German Rexroth Hydraulic meter: German WIKA
Engine	Single cylinder diesel engine 18kw(25hp) Electrical system 12V
Hydraulic Transmission	The machine can realize step less speed The machine is provided with tension presetting system
Configuration	Hydraulic dynamometers Hydraulic oil cooling system Grounding connection point
Additional Devices	Air brake system for the trailer (extra charge) Hydraulic conductor clamps for drum change operations (extra charge) Swivel guide rope roller Trailer for towing at max speed of 15 km/h

Overhead Line Stringing Equipment 30KN Hydraulic Wire Tensioner 0
